PVC thread screw PV00

PVC high-low thread screw countersunk head Ø7,7 mm with PH recess
PVC thread screw PV00
Product overview

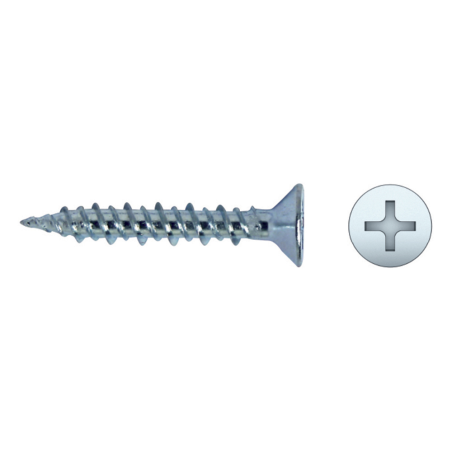

Special plastic thread screw PV00 for PVC profiles, with countersunk head Ø7,7 mm and PH recess, has a double thread high-low for a quick insertion. The high-low thread allow a better resistance to pull-out. Made of high quality steel blue zinc plated and yellow zinc plated coating. Also available with the head white lacquered.
Download documents
List of references
Filters
Reference
93919PV00
93925PV00
9W3925PV00
93930PV00
93938PV00
9W3938PV00
9B3945PV00
93945PV00
Close
Suitable for
PVC profiles
Plastic thread
Close
Packaging units
500
1000
Close
Sort by
Column
Reference
Screw material
Head diameter [mm]
Drive system
Type of plug
Suitable for
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
93919PV00
93925PV00
9W3925PV00
93930PV00
93938PV00
9W3938PV00
9B3945PV00
93945PV00
Diameter [mm]
3.9
3.9
3.9
3.9
3.9
3.9
3.9
3.9
Length [mm]
19
25
25
30
38
38
45
45
Screw material
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Head diameter [mm]
7.7
7.7
7.7
7.7
7.7
7.7
7.7
7.7
Drive system
PH
PH
PH
PH
PH
PH
PH
PH
Type of plug
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Suitable for
PVC profiles
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Packaging units
500
1000
1000
500
500
500
500
500
Packaging type.
Box
Box
Box
Box
Box
Box
Box
Box
8 / 8 references are shown
Applications
  • Fittings to PVC profile
  • PVC furniture
  • PVC profiles
Further specifications

Key features:

  • PVC thread for PVC profiles
  • Double high-low thread for a quick insertion

Base materials:

  • PVC profile
