Plastic bag EPDM rubber clamp M8+M10 RI

Plastic bag EPDM rubber lined clamp M8+M10 reinforced with double rib

Product overview

The EPDM rubber lined clamps RI M8+M10 clamp set has a connecting nut with a special resistance due his cross welding. The two multifunction screw with hexagonal combination head (slot and crosshead) are impossible to loose.

The clamp incorporates double reinforcement ribs and includes ageing-resistant silicon rubber lining suitable for high temperature. Due to its temperature resistance from -50°C to +110°C the clamp RI is suitable for mounting hot water and heating pipes.

Due to the M8 and M10 connecting thread the clamp L can be screwed easily onto threaded rods or metric screws with M8 respectively M10 thread.

Clamp RI is certified with the RoHS label, does not contain hazardous substances.

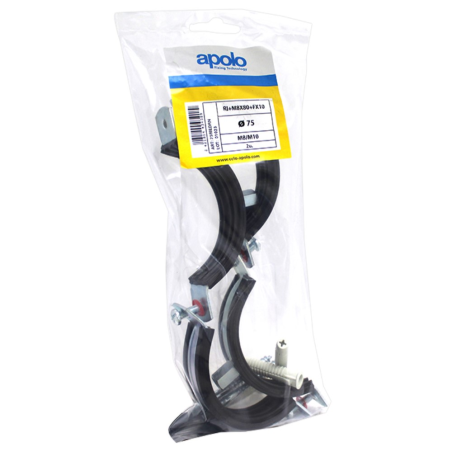

We have compiled everything you need for a quick installation in the RI clamp set.

The bag with EURO perforation contains:

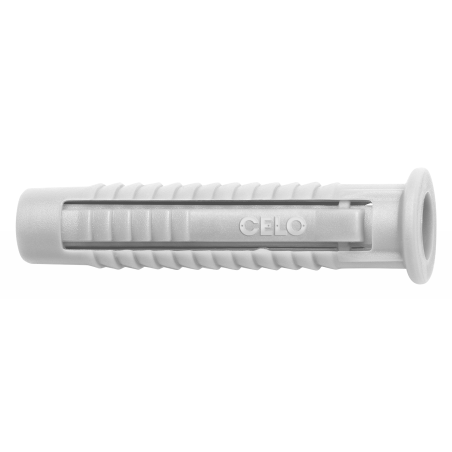

2 plugs FX 10 plugs for reliable anchoring in most base materials, Made in Germany of high-quality ageing- weather and UV-resistant nylon.

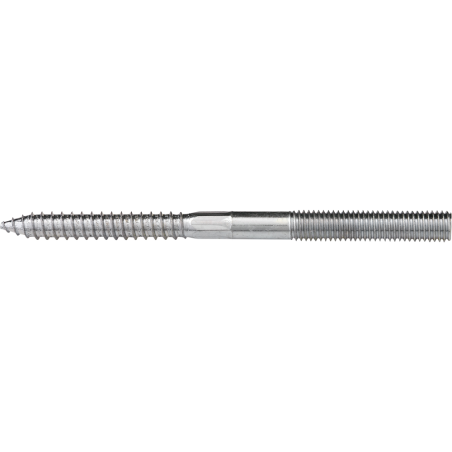

2 EDR hanger bolts with wood thread for screwing into the plug and metric thread for connection with the pipe clamp RI.

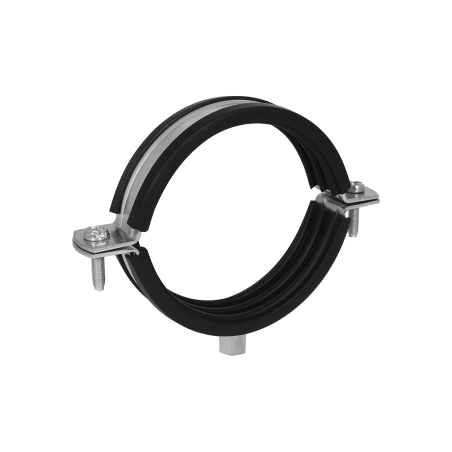

2 RI pipe clamps for quick mounting of the pipe.

Download documents

List of references

Filters

Eff. Anchorage depth [mm]

Height [mm]

Clamp length [mm]

Suitable for

Packaging type.

Reference

140RIEDRN

18RIEDRN

22RIEDRN

28RIEDRN

35RIEDRN

40RIEDRN

50RIEDRN

60RIEDRN

75RIEDRN

90RIEDRN

110RIEDRN

Diameter [mm]

140

110

Length [mm]

100

109

133

145

169

Eff. Anchorage depth [mm]

Height [mm]

145.5

40.5

45.5

49.5

70.5

86.5

102.5

111.5

122.5

Clamp length [mm]

198.5

15-19

Suitable for

Pipe Ø 140-200

Pipe Ø 15-25

Material

Steel + EPDM insert

Packaging units

Packaging type.

Box

Bag

Box

11 / 11 references are shown

Applications

Metal pipes
PVC pipes
Drainage pipes
PVC downspouts

Further specifications

Key features:

High strength due to double reinforcing ribs
Noise reduction according to DIN EN ISO 3822-1
Compliant for sound insulation design according to DIN 4109
Temperature resistance: -50°C to +110 °C, suitable for hot water and heating pipes
Longer screws for better fitting and easy mounting size M6x18 from Ø18 to Ø60 and size M6x25 from Ø75 to Ø400
Bigger thickness of EPDM rubber 4.5 mm
Connecting nut longer 18 mm
UV rays and seawater resistand EPDM rubber
Longer screws for easy mounting M6x18mm from Ø18 to Ø60 and M6x25 mm from Ø75 to Ø400
