Cavity fixing HRM 6-16 with truss head (PH2)

Name: Cavity fixing HRM 6-16 with truss head (PH2)
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 9616HRM25

Metal plug for heavy loads in cavity fixings

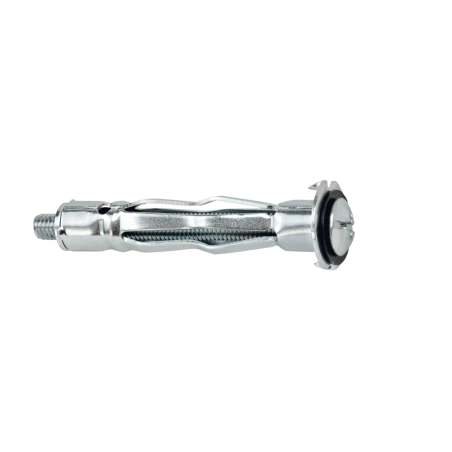

Product image of cavity fixing metal HRM with pan head PZ

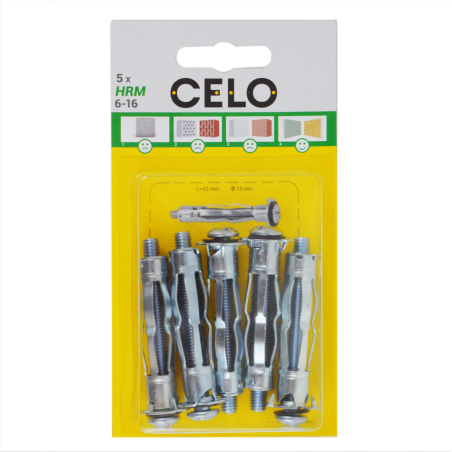

Packaging photo of box 828 cavity fixing metal HRM 4-24 front side

Packaging photo of box 828 cavity fixing metal HRM back side

Packaging photo of box 828 cavity fixing metal HRM 4-24 label side

Application image of cavity plug metal HRM: Shelf with plants attached to plasterboard

Application image of cavity plug metal HRM: Wall cupboards in the kitchen

EN - Technical drawing of cavity plug metal HRM

A Back to combination list

Reference:

9616HRM25

Coating :

Galvanised

Material :

Steel

Thread th:

Recess type Drive:

PH2

Head type Head:

Truss head

Drill hole diameter [mm] d₀:

Plug length [mm] L_d:

Thickness of fixture [mm] t_fix:

36-49

Panel thickness [mm] h_p:

3-16

Screw length [mm] L_s:

Packaging units:

Packaging type.:

Box

GTIN:

4250438908171

Download documents

View videos

Reference Description

9616HRM25

The metal cavity fixing HRM 6-16 with truss head (PH2) is very versatile for fixings on boards like gypsum plasterboards, fibreboards or chipboards, but also for cavity ceilings. Its advantage is that after installation, the arms of the anchor expand over a large area behind the, thus reliably ensuring high load values. For a comfortable, controlled and optimal installation the usage of the installation pliers MZA 100 is recommended. The assembly pliers MZA is particularly helpful when installing large quantities of fixings and saves both time and money. Alternatively, installation with a cordless screwdriver or a screwdriver is possible. Finally, as a metal plug, the HRM is not flammable according to DIN EN 13501-1, class A1.

Applications
