Fixings and innovative solutions for pros at CELO

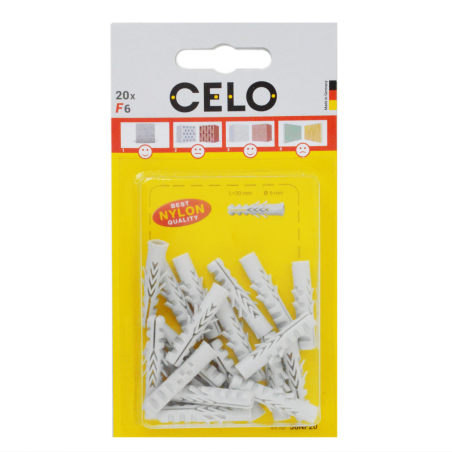

Blister Standard plug F 6
The classic for solid base materials



A Back to combination list
Reference:
56NF50
Material :
Nylon
Drill hole diameter [mm] d0:
6
Drill hole depth [mm] h1:
40
Anchorage depth [mm] hnom:
30
Plug length [mm] Ld:
30
Screw diameter [mm] ds:
3.5-5
Packaging units:
50
Packaging type.:
Blister
GTIN:
4001990497586

Reference Description
56NF50
Due to the high expansion ability the standard plug F 6 in blister achieves high pull out loads. It is ideally suitable for solid base materials, but is also characterized by good load values in perforated bricks and aerated concrete. Because of the very good screw guidance, the screw cannot move out of the plug while screwing in, while distinct wings at the plug cause a good twist resistance in the drill hole. Furthermore the strong design prevents bending when hammered in. The plug consists of high quality and ageing resistant nylon for long-term use.
The right amount of plugs for your individual projects in the handy blister!
Applications
- Lighting
- Electric switches
- Wall rack
- Wall cabinets
- Letterbox
- Curtain rail
- Sanitary fixings
- Handrail
- TV holder
- Paintings


Further specifications
Key features:
- High pull out loads due to high expansion ability (four-sided expansion in the middle section)
- Screw cannot move out of the clamp during installation
- Strong load values even in perforated bricks and aerated concrete
- High-quality age-resistant nylon
Base materials
- Concrete
- Natural stone
- Solid brick
- Solid sand-lime brick
- Lightweight solid concrete block
- Aerated concrete
- Gypsum block
- Drywalls
- Lightweight hollow concrete block
- Hollow sand-lime block
- Hollow brick
