Concrete screw BTS6 E 6-35 M8, connecting thread, zinc flake coating

Name: Concrete screw BTS6 E 6-35 M8, connecting thread, zinc flake coating
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 9ZG635M8BTSE

The professional screw for fast installation in concrete

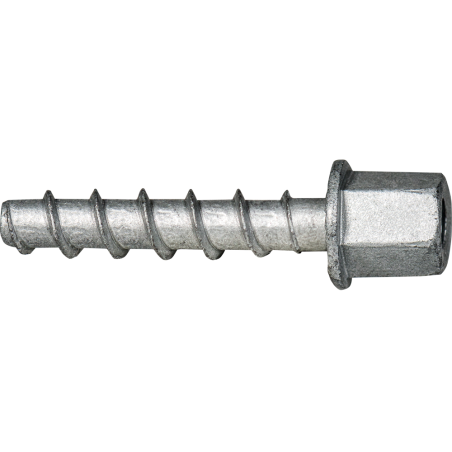

Product image of concrete screw BTS 6 E with hex head with connecting thread

Packaging photo of box 921 concrete screw BTS 6 E label side

Packaging photo of box 921 concrete screw BTS 6 E front side

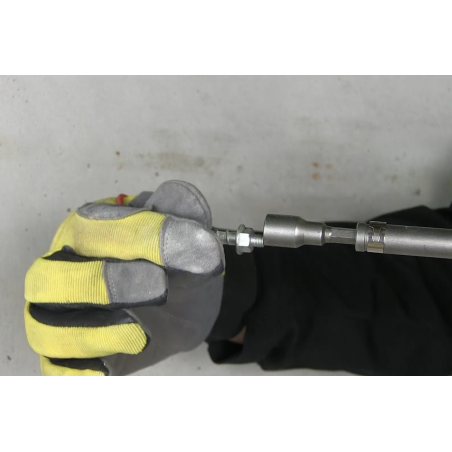

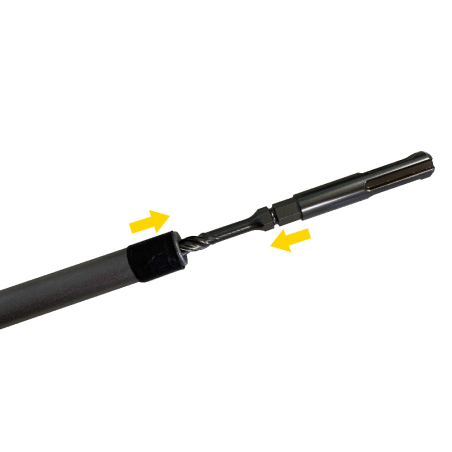

Application image of concrete screw BTS6 E with connecting thread: BTS is inserted into setting tool for hexagon head screws

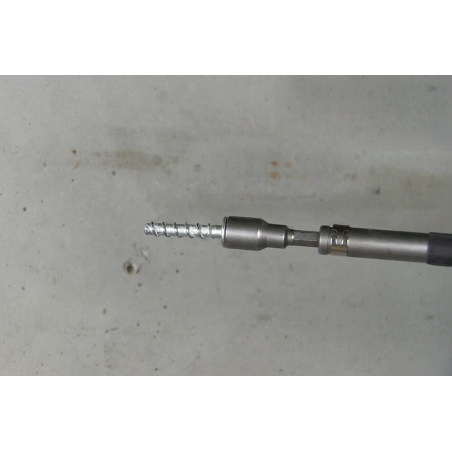

Application image of concrete screw BTS6 E with connecting thread: BTS plugged onto the setting tool for hexagon head screws ready for assembly

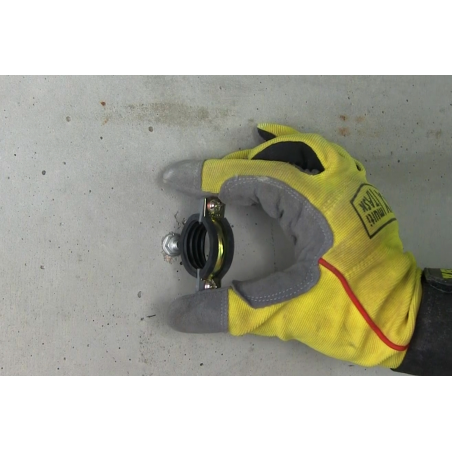

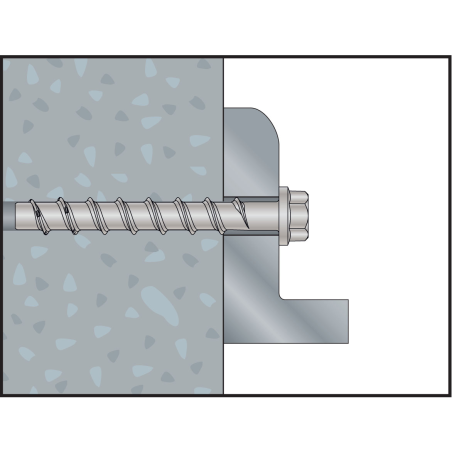

Application image of concrete screw BTS6 E with connecting thread: A metal clamp is screwed onto the connecting thread of the concrete screw

EN - Technical drawing of concrete screw BTS

A Back to combination list

Reference:

9ZG635M8BTSE

Coating :

Zinc flake coating

Material :

Steel

Recess type :

SW10

Head type :

Hex-head with connecting thread

Drill hole diameter [mm] d₀:

Drill hole depth [mm] h₁:

Anchorage depth [mm] h_nom:

Screw diameter [mm] d_s:

7.5

Thread length [mm] Lth:

Head diameter [mm] d_h:

Connecting thread th_c:

Clearance hole [mm] d_f:

8-9

Anchor length [mm] :

Packaging units:

100

Packaging type.:

Box

GTIN:

4250438918149

Download documents

View videos

Reference Description

9ZG635M8BTSE

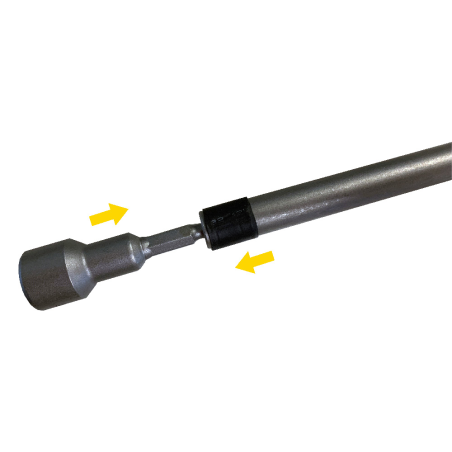

The concrete screw BTS6 E 6-35 M8 is approved for multiple use for non-structural applications in cracked concrete as well as in precast concrete hollow core slabs. Head type E is characterized by a hex-head (SW 10) with integral washer (Ø 14 mm) and a practical connecting thread M8 with a length of 15 mm. It is your very fast solution for fixing fastening rails etc., as the special accessories allow assembling in just two steps: drilling and fixing with the same tool. The special adapter and socket wrench can be easily put over the drill bit and that way, all BTS 6 can be mounted in almost no time. Different head shapes (hex head, pan-head Ø 14.5 mm, pan-head large Ø 19 mm, and hex-head with connecting thread or with internal thread) enable various applications. Short lengths minimize the risk of hitting rebars during installation. The zinc flake coating ensures a high corrosion resistance for all BTS 6.

Applications

Fastening rails
Metal profiles
Handrail
Lampposts
Support profiles

Further specifications

Key features:

ETA approved for multiple use for non-structural applications in cracked concrete
ETA approved for multiple use for non-structural applications in precast concrete hollow core slabs
Very fast method for fixing fastening rails

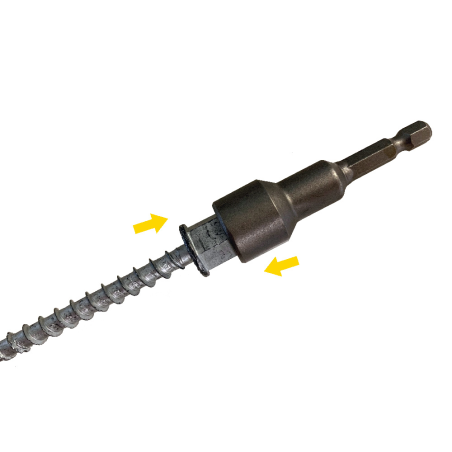

Compatible with BTS 6 accessories for a faster installation with 1 tool.
Different heads for various applications
Short lengths reduce risk of hitting rebars
Zinc flake coating (ZnAl) for improved corrosion resistance and higher application security
Hex-head screw with connecting thread
The BTS is also ideal for temporary fixings as it can be removed completely
Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)
