Blister Metal frame plug MR

Specialised plug for window mounting

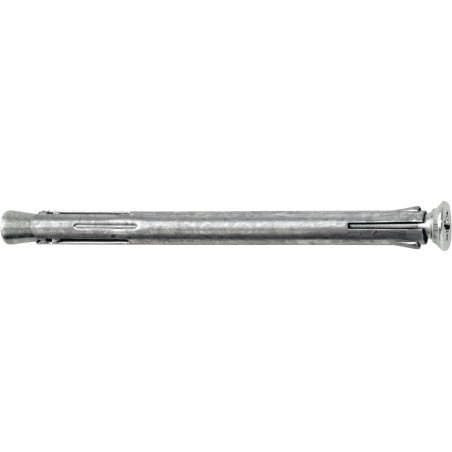

Product image of blister metal frame plug MR 10-92
Technical drawing of metal frame plug MR
Product image of metal frame plug MR
Mounting image MR 1
Mounting image MR 2
Mounting image MR 3
Mounting image MR 4
Product overview

The metal frame plug MR blister is suitable for constraint force free distance mounting, this means no expansion in the window frame, thanks to force controlled spreading of the sleeve when the screw is tightened (maximum installation torque is 5 Nm).

Show more
List of references
Filters
Reference
51092MR6
510112MR6
510132MR6
510152MR6
Close
Thickness of fixture [mm]
62
82
102
122
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Thickness of fixture [mm]
Recess type
Material
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
51092MR6
510112MR6
510132MR6
510152MR6
Screw diameter [mm]
0
0
0
10
Screw length [mm]
0
0
0
152
Drill hole diameter [mm]
10
10
10
10
Drill hole depth [mm]
50
50
50
50
Thickness of fixture [mm]
62
82
102
122
Recess type
PZ3
PZ3
PZ3
PZ3
Material
Steel
Steel
Steel
Steel
Packaging units
6
6
6
6
Packaging type.
Blister
Blister
Blister
Blister
4 / 4 references are shown
Applications
  • Window frames
  • Door frames
Further specifications

Key features:

  • Window frame installation free of constraint forces (stress-free)
  • Stable metal design for distance installation
  • Sendzimir zinc plated anchor sleeve for good protection against corrosion

Base materials:

  • Concrete
  • Natural stone
  • Lightweight solid concrete block
  • Solid brick
  • Solid sand-lime brick
  • Hollow brick
  • Hollow sand-lime block
  • Aerated concrete
