Wire conduit clip WSC

Name: Wire conduit clip WSC
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 9WSC

Install multiple cables with this nailing accessory

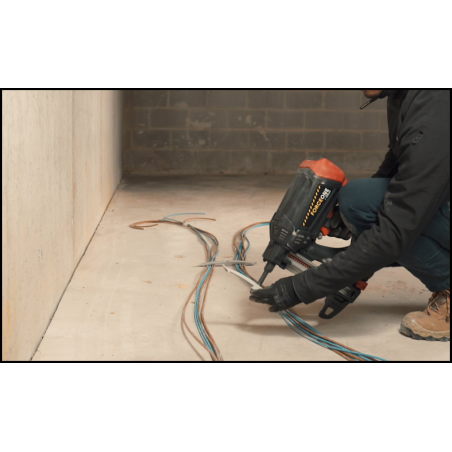

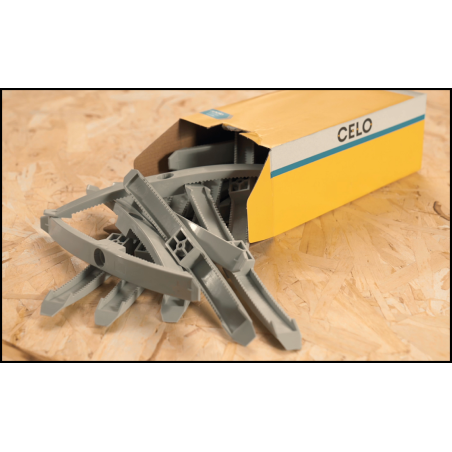

Mounting Image WDC Double Cable Accesssory

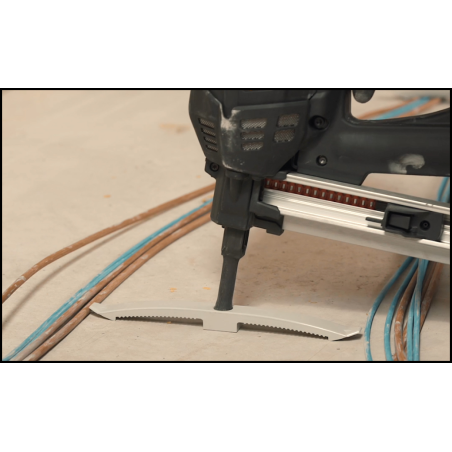

Mounting Image WDC Double Cable Accessory

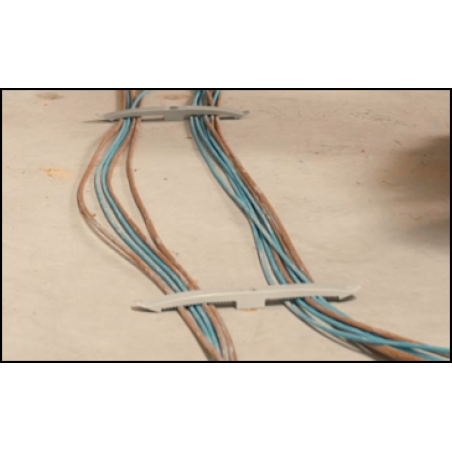

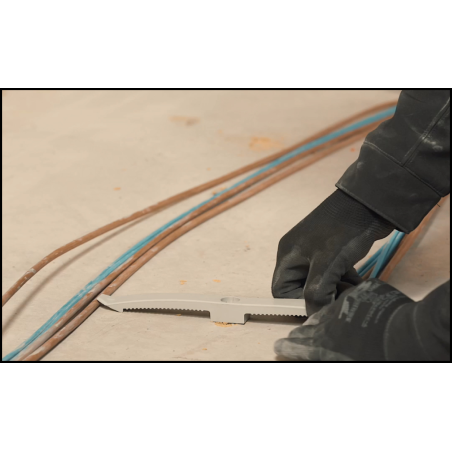

Mounting Image WDC Double Wire Accessory

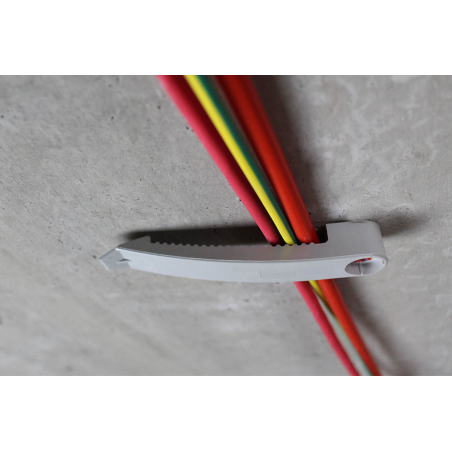

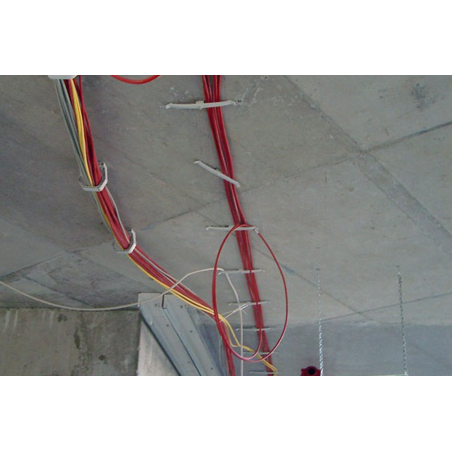

Application Image WDC Double Wire Accessory

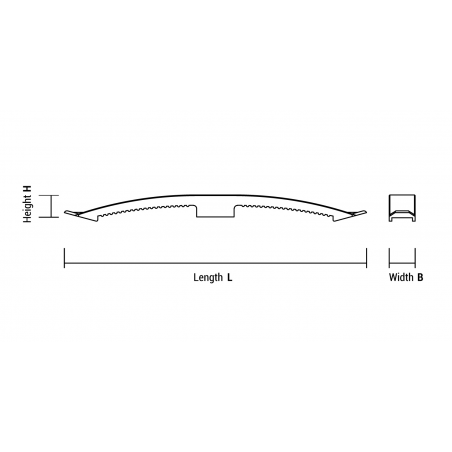

EN - Technical drawing of wire conduit WDC

A Back to combination list

Reference:

9WSC

Material :

Nylon

Colour :

Grey

Length [mm] L:

128

Width [mm] B:

Height [mm] H:

17.5

Packaging units:

100

Packaging type.:

Carton

GTIN:

8421814427401

Download documents

View videos

Reference Description

9WSC

The wire conduit clip WSC is a very versatile system and can be installed quickly with the FORCE ONE+ gas nailer. Several cables can be secured with only one fixing point.

This product is now ETA-approved when used as a complete system: FORCE ONE+ gas nailer + XHA nails (minimum homologated length is 22mm) + nailing accessories, guaranteeing safety in your installations.

Attach the WSC to the nose of the nailer and install it in the desired place. After fixing, the cables are simply pushed under the wing. It can also be fixed with a plug Ø6 or a nailplug.

WSC is halogen-free and RoHs compliant. Made in Germany of high-quality ageing-, weather-, and UV-resistant nylon.

Applications
