Metal conduit clip FT 20 for gas nailer, zinc plated

Fast installation with metal conduit clip for gas nailer
Product image of conduit clip FT

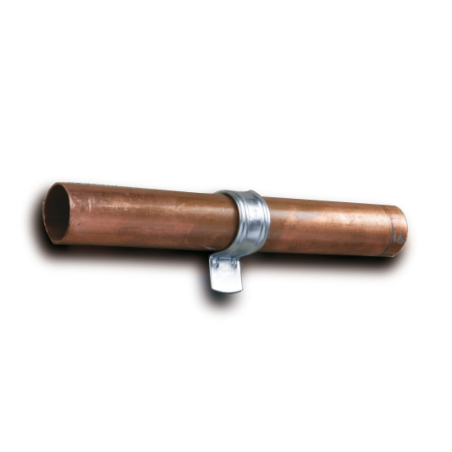

Mounting image FT 1

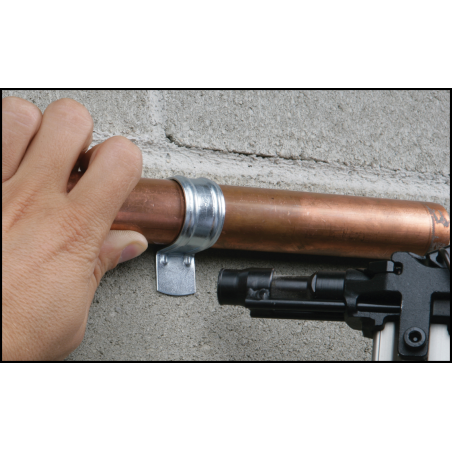

Mounting image FT 2

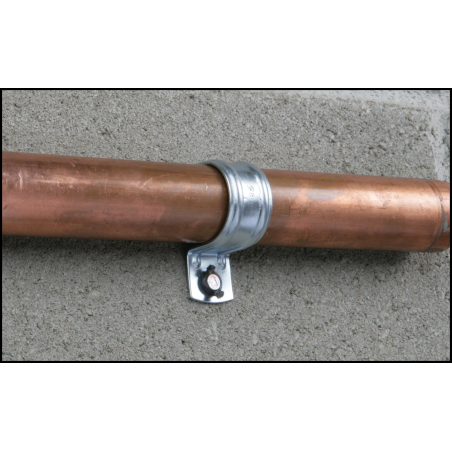

Mounting image FT 3
Application image of conduit clip FT: FT is fixed to a steel beam with a gas nailer nail and holds a metal tube

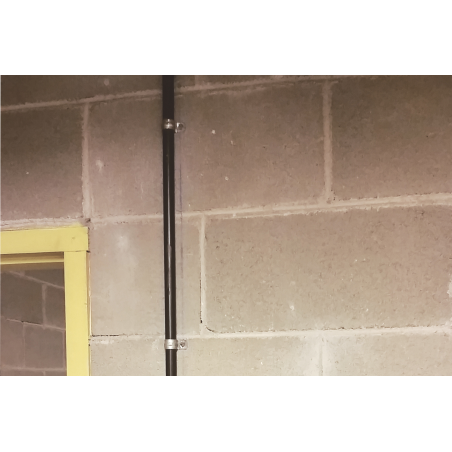

Application image of conduit clip FT: Fixing a metal tube to the concrete wall of a building shell

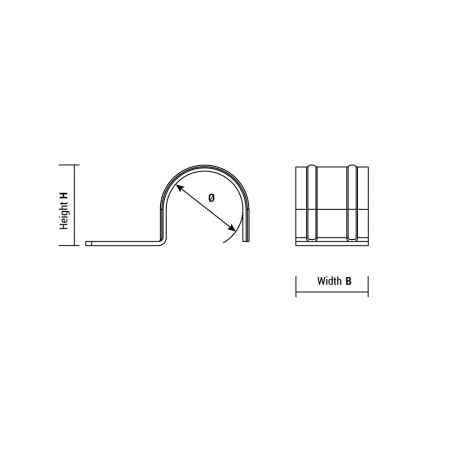

EN - Technical drawing of conduit clip FT
A Back to combination list
Reference:
920FT
Coating :
Galvanised
Suitable for :
Pipe Ø 20
Screw material :
Steel
Diameter [mm] Ø:
20
Width [mm] B:
18
Height [mm] H:
18
Packaging units:
100
Packaging type.:
Box
GTIN:
8421814412773
Download documents
Reference Description
920FT

The safety clip FT 20 offers a very fast and flexible application. The product can be used with any gas nailer. Due to the reinforcing ribs the clip guarantees a high stability.

The FT is perfect for a quick installation of electric cables, flexible and rigid cable conduits, water and heating pipes. It can also be used for the installation of flexible emty tubes on the floor.

Applications
  • Alarm cable
  • Telecommunications cable
  • Signal cable
Further specifications

Key features:

  • Fire approved with XHA nails
Base materials
Suitable materials
Steel
Steel
Concrete
Concrete
Hollow concrete block
Hollow concrete block
Solid stone
Solid stone
Wood
Wood
Steel beam/purlin
Steel beam/purlin
Other related products
How to install
Mounting image FT 1
Mounting image FT 2
Mounting image FT 3
Watch the video
