Concrete screw BTS B 5-45/20, hex-head, zinc flake coating

Name: Concrete screw BTS B 5-45/20, hex-head, zinc flake coating
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 9ZG545BTSB

Universal screw for direct and fast fixing

Product image of concrete screw BTS B with hex-head

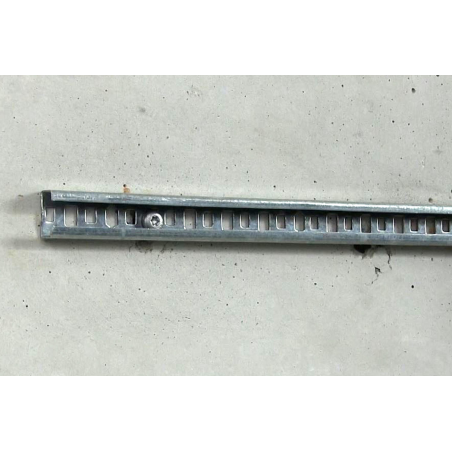

Application image of concrete screw BTS5 with pan head: metal trakc on concrete wall

Concrete screw BTS B 5-45/20, hex-head, zinc flake coating

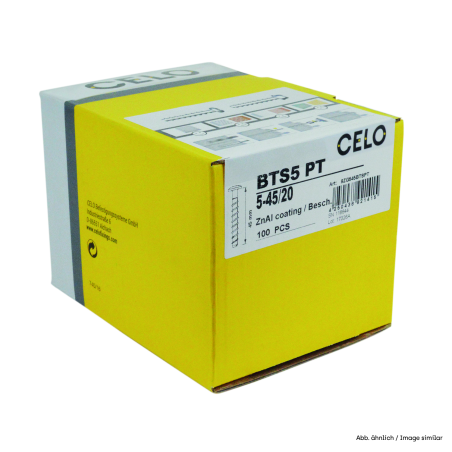

Packaging photo of box 740a concrete screw BTS5 PT label side

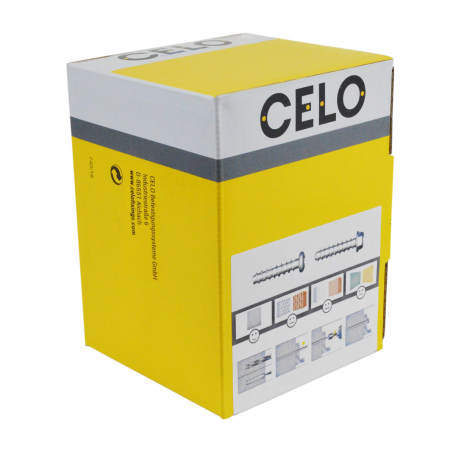

Packaging photo of box 740a concrete screw BTS5 PT front side

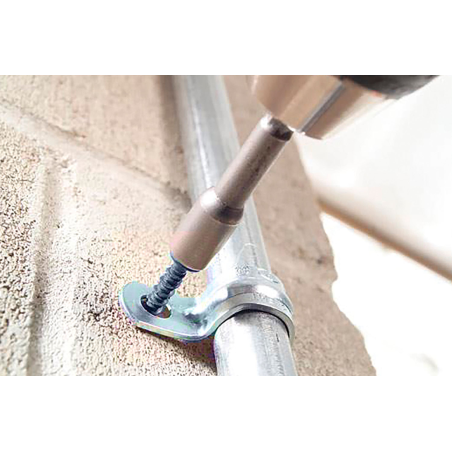

Application image of concrete screw BTS5: Metal tube is fixed to the wall with metal clip and BTS5

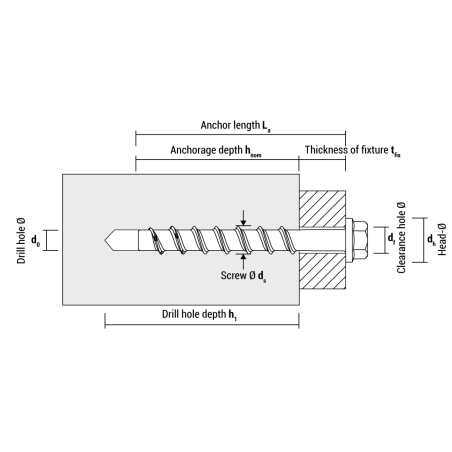

EN - Technical drawing of concrete screw BTS

A Back to combination list

Reference:

9ZG545BTSB

Coating :

Zinc flake coating

Material :

Steel

Recess type :

SW8

Head type :

Hex-head with integral washer

Drill hole diameter [mm] d₀:

Drill hole depth [mm] h₁:

Anchorage depth [mm] h_nom:

Screw diameter [mm] d_s:

6.4

Thickness of fixture [mm] t_fix:

Head diameter [mm] d_h:

Clearance hole [mm] d_f:

7.5

Anchor length [mm] L_a:

Packaging units:

100

Packaging type.:

Box

GTIN:

4250438921392

Download documents

View videos

Reference Description

9ZG545BTSB

The concrete screw BTS5 B 5-45/20 with hexagonal head (SW8) is perfectly suited for a direct and fast fastening in different base materials. Due to the small drill hole of only 5 mm and the low setting depth of only 25 mm, a very low screw-in force is required. It is even possible to install it manually without a screwdriver. The small concrete screw even holds loads of up to 80 kg in concrete. The zinc flake coating provides high corrosion protection. The BTS5 is well suited for electrical and sanitary fixings. As the screw has an integral washer Ø 11 mm there is no extra washer required.

Applications

Electrical installations
Sanitary fixings

Further specifications

Key features:

Direct and fast fixing
Small pre-drill with 5mm drill bit
Manual installation without battery screwdriver
Low embedment depth of only 25 mm
Suitable for fixing the metal clips F and DF
Tested according to DIN 4102-12 (functional integrity)
Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)
