Multifunction frame plug MFR SB 14-80 TX, SB, countersunk screw, zinc plated

For flush finishing in wood

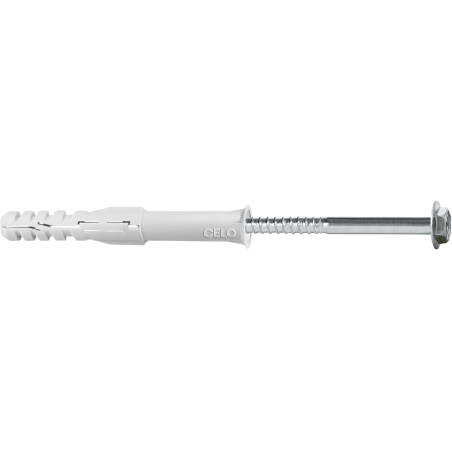

Product image of multifunction frame plug MFR 14 countersunk plug with TX countersunk screw, zinc plated
Mounting image MFR SB TX 1
Mounting image MFR SB TX 2
Mounting image MFR SB TX 3
Mounting image MFR SB TX 4
Application image of multifunction frame plug MFR: Metal facade substructures on concrete
Application image of multifunction frame plug MFR: Facade substructure of wooden battens on brick wall
EN - Technical drawing of multifunctional frame plug MFR
A Back to combination list
Reference:
91480MFRST
Coating :
Galvanised
Material :
Nylon
Recess type Drive:
TX50
Head type Head:
Countersunk head
Screw material :
Steel
Type of plug :
Countersunk
Drill hole diameter [mm] d0:
14
Drill hole depth [mm] h1:
85
Anchorage depth [mm] hnom:
70
Plug length [mm] Ld:
80
Screw diameter [mm] ds:
10
Thickness of fixture [mm] tfix:
10
Head diameter [mm] dh:
21.5
Packaging units:
25
Packaging type.:
Box
GTIN:
4001990518953
Download documents
View videos
Reference Description
91480MFRST
1 kit includes:
  • 1 x Plug MFR 14- 80 SB
  • 1 x Countersunk screw 10x85 TX, zinc plated
The multifunction frame plug MFR SB 14-80 TX with countersunk plug and countersunk screw in zinc plated is approved for all common base materials. The multifunction frame plug MFR enables universal mounting of facade substructures as well as wood and metal parts. The long expansion area and early expansion achieved by lateral bars ensure reliable and secure hold. The plug and srew are pre-assembled, this reduces costs in warehousing and saves time at the construction site. The uniform setting depth of 70 mm eases the installation of different plug lengths. The plug consists of high quality and ageing resistant nylon. The countersunk plug ensures smooth mounting in the fixture. With the MFR 14-80 you can install fixture with a thickness of 10 mm.
Applications
  • Facade substructures made of wood and metal
  • Window and door frame fixings
  • Fire protection doors
  • Doors
  • Metal brackets, rails
  • Cantilevers
  • Wall cabinets
  • Panels
  • Frame fixings
  • Square timber
  • Handrail
Further specifications

Key features:

  • ETA approval guarantees a secure fixing in many building materials
  • Long expansion area and early expansion achieved by lateral bars for a reliable and secure hold
  • Approved by Hörmann for fire protection doors
  • Pre-assembled screw and plug
  • High-quality age-resistant nylon
  • For clean wood installations – countersunk dowels with countersunk screws can be sunk perfectly flush
Base materials
eta
Suitable materials with approvals
Concrete
Concrete
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Precast prestressed hollow core slabs
Precast prestressed hollow core slabs
Aerated concrete
Aerated concrete
Hollow brick
Hollow brick
Hollow sand-lime block
Hollow sand-lime block
Hollow aerated concrete block
Hollow aerated concrete block
Other suitable materials
Lightweight solid concrete block
Lightweight solid concrete block
Natural stone
Natural stone
Other related products
How to install
Step 1
Step 2
Step 3
Step 4
Watch the video

Do you have any questions about this product?

Request more info
