Plastic bag multifunction frame plug MFR SB 8-60 TX, SB, countersunk screw, zinc plated

For flush finishing in wood

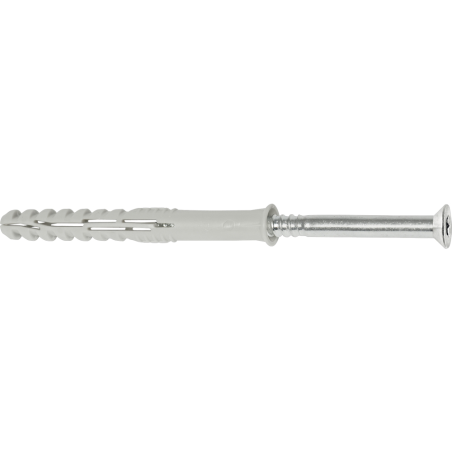

Product image of multifunction frame plug MFR 8 countersunk plug with TX countersunk screw, zinc plated

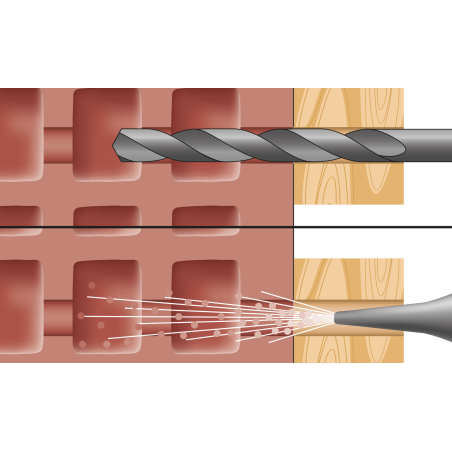

Mounting image MFR SB TX 1

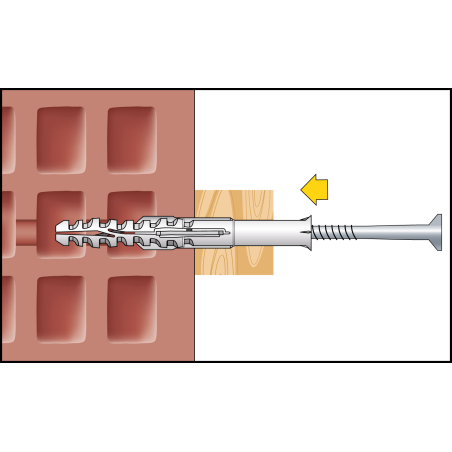

Mounting image MFR SB TX 2

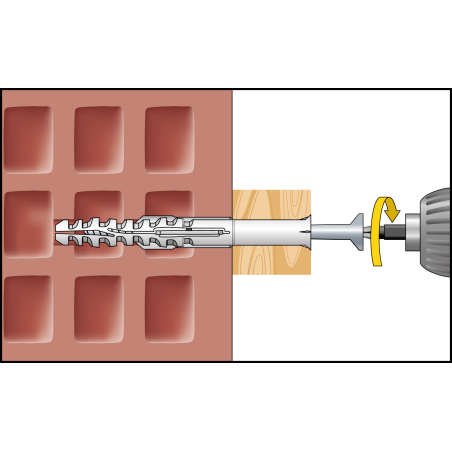

Mounting image MFR SB TX 3

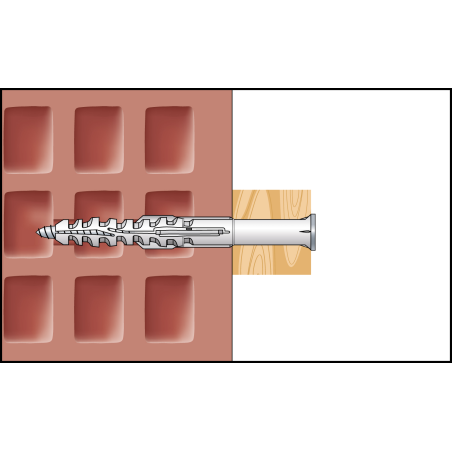

Mounting image MFR SB TX 4

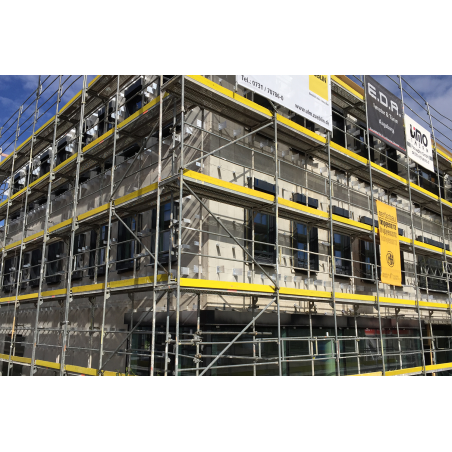

Application image of multifunction frame plug MFR: Metal facade substructures on concrete

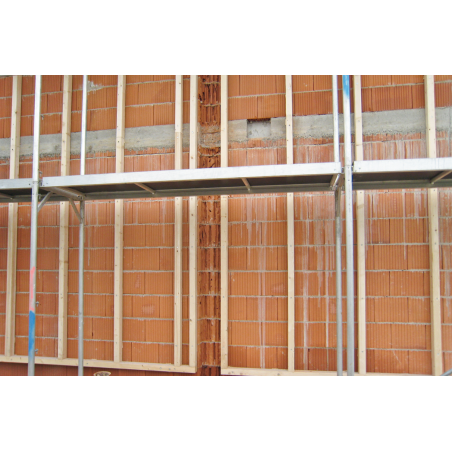

Application image of multifunction frame plug MFR: Facade substructure of wooden battens on brick wall

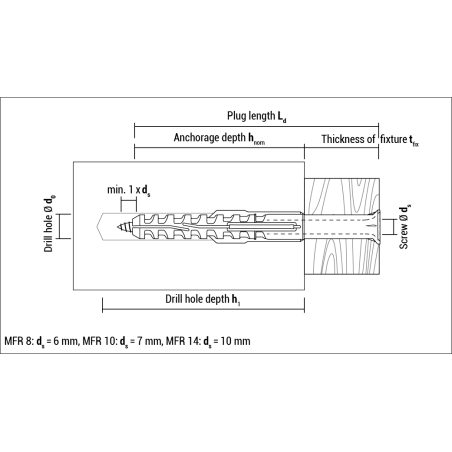

EN - Technical drawing of multifunctional frame plug MFR
A Back to combination list
Reference:
860MFRST
Coating :
Galvanised
Material :
Nylon
Head type Head:
Countersunk head
Screw material :
Steel
Recess type Drive:
TX30
Type of plug :
Countersunk
Drill hole diameter [mm] d0:
8
Drill hole depth [mm] h1:
60
Anchorage depth [mm] hnom:
50
Plug length [mm] Ld:
60
Screw diameter [mm] ds:
6
Thickness of fixture [mm] tfix:
10
Packaging units:
4
Packaging type.:
Foil bag
GTIN:
8421814433228
Download documents
Reference Description
860MFRST

The multifunction frame plug MFR SB 8-60 TX with countersunk plug and countersunk screw in zinc plated is approved for all common base materials. The multifunction frame plug MFR enables universal mounting of facade substructures as well as wood and metal parts. The MFR 8 is also approved for installation in precast prestresst hollow core slabs. The long expansion area and early expansion achieved by lateral bars ensure reliable and secure hold. The plug and srew are pre-assembled, this reduces costs in warehousing and saves time at the construction site. The uniform setting depth of 50 mm eases the installation of different plug lengths. The plug consists of high quality and ageing resistant nylon. The countersunk plug ensures smooth mounting in the fixture. With the MFR 8-60 you can install fixture with a thickness of 10 mm.

This version in the handy plastic bag is perfectly suitable for DIY.

Applications
  • Facade substructures made of wood and metal
  • Window and door frame fixings
  • Fire protection doors
  • Doors
  • Metal brackets, rails
  • Cantilevers
  • Wall cabinets
  • Panels
  • Frame fixings
  • Square timber
  • Handrail
Further specifications

Key features:

  • ETA approval guarantees a secure fixing in many building materials
  • Long expansion area and early expansion achieved by lateral bars for a reliable and secure hold
  • Approved by Hörmann for fire protection doors
  • Pre-assembled screw and plug
  • High-quality age-resistant nylon
  • Low drilling depth, user-friendly
  • Easy to use and reduced installation time
Base materials
eta
Suitable materials with approvals
Concrete
Concrete
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Aerated concrete
Aerated concrete
Hollow brick
Hollow brick
Hollow sand-lime block
Hollow sand-lime block
Hollow aerated concrete block
Hollow aerated concrete block
Precast prestressed hollow core slabs
Precast prestressed hollow core slabs
Other suitable materials
Natural stone
Natural stone
Lightweight solid concrete block
Lightweight solid concrete block
