Blister Multifunction frame plug MFR 10-115 SB TX

For flush finishing in wood

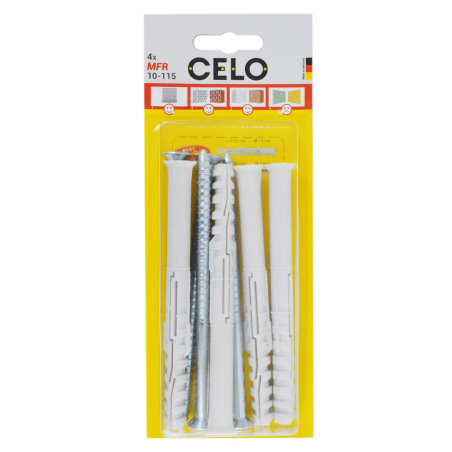

Product image of blister MFR 10-115 countersunk plug with countersunk screw with TX reccess

Product image of multifunction frame plug MFR 10 countersunk plug with TX countersunk screw, zinc plated

Application image of multifunction frame plug MFR: Metal facade substructures on concrete

Application image of multifunction frame plug MFR: Facade substructure of wooden battens on brick wall

EN - Technical drawing of multifunctional frame plug MFR

A Back to combination list

Reference:

510115MFRST4

Coating :

Galvanised

Material :

Nylon

Head type Head:

Countersunk head

Screw material :

Steel

Recess type Drive:

TX40

Type of plug :

Countersunk

Drill hole diameter [mm] d₀:

Plug length [mm] L_d:

115

Screw diameter [mm] d_s:

Head diameter [mm] d_h:

Drill hole depth [mm] h₁:

60/80

Anchorage depth [mm] h_nom:

50/70

Thickness of fixture [mm] t_fix:

65/45

Packaging units:

Packaging type.:

Blister

GTIN:

4250438933685

Download documents

Reference Description

510115MFRST4

1 kit includes:

1 x Countersunk screw 7x120 TX, zinc plated
1 x Plug MFR 10-115 SB

The multifunction frame plug MFR 10-115 with countersunk plug and countersunk screw in zinc plated is approved for all common base materials. The multifunction frame plug MFR enables universal mounting of facade substructures as well as wood and metal parts. With its two setting depths of 50 mm and 70 mm the MFR is suitable for very flexible installations. The MFR 10 is also approved for installation in precast prestresst hollow core slabs. The long expansion area and early expansion achieved by lateral bars ensure reliable and secure hold. The plug and srew are pre-assembled, so it saves your time when you install the product. The plug consists of high quality and ageing resistant nylon. The countersunk plug ensures smooth mounting in the fixture. With the MFR 10-115 you can install fixture with a thickness of 65 or 45 mm. These saves you cost in your warehouse and also on the construction site, because you can use one plug for different applications.

It´s packed in a handy blister. Every blister includes 4 plugs and 4 screws.

Applications

Facade substructures made of wood and metal
Window and door frame fixings
Fire protection doors
Metal brackets, rails
Consoles
Wall cabinets
Panels
Square timber
Handrail
Doors
Paintings

Further specifications

Key features:

Long expansion area and early expansion achieved by lateral bars for a reliable and secure hold
Pre-assembled screw and plug
ETA approval guarantees a secure fixing in many building materials

Approved by Hörmann for fire protection doors
High-quality age-resistant nylon
Conforms to the technical requirements for thermal installations for buildings 1027/2007 (RITE)
For clean wood installations – countersunk dowels with countersunk screws can be sunk perfectly flush
