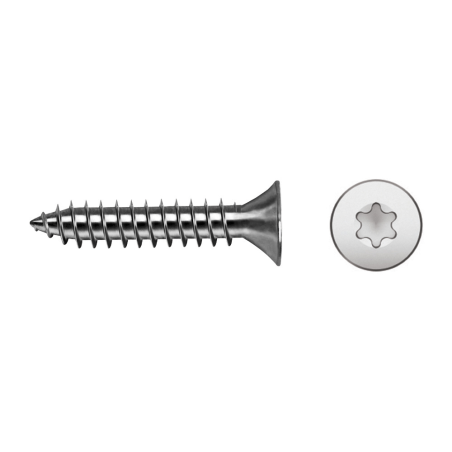

Self-tapping screw countersunk head SIT 7061

Self-tapping screw countersunk head with SIT recess perfect fit
Self-tapping screw countersunk head SIT 7061
Product overview
CELO self-tapping screw ISO 7061S countersunk head and SIT recess has the perfect fit between recess and screw for easy screwing. The SIT recess allows a perfect transmission of the tightening torque. Its conical inner shape centres the screwing and allows to keep the screw fixed to the recess facilitating its installation. Made of high-quality steel, it is available in blue zinc plated.
List of references
Filters
Reference
942137061S
942167061S
942197061S
948257061S
948327061S
948387061S
Close
Screw material
Steel
Close
Head height [mm]
3.6
3.9
Close
Head type
Countersunk head
Close
Suitable for
Metal sheet assembly
Close
Thread
Selftapping thread
Close
Packaging units
500
250
Close
Packaging type
Box
Close
Sort by
Column
Reference
Screw material
Head height [mm]
Head type
Suitable for
Thread
Packaging units
Packaging type
Close
Sort direction
Ascending
Descending
Close
Reference
942137061S
942167061S
942197061S
948257061S
948327061S
948387061S
Screw material
Steel
Steel
Steel
Steel
Steel
Steel
Head height [mm]
3.6
3.6
3.6
3.9
3.9
3.9
Head type
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Suitable for
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Thread
Selftapping thread
Selftapping thread
Selftapping thread
Selftapping thread
Selftapping thread
Selftapping thread
Packaging units
500
500
500
250
250
250
Packaging type
Box
Box
Box
Box
Box
Box
6 / 6 references are shown
Applications
  • Thin metal sheets
  • Metal furniture
  • Garage metal doors
  • Metal sheet profiles
  • Metal profiles
  • Metal door
  • Metal frames
  • Metal assemblies
  • Metal profile fittings
  • Metal sheets
Further specifications

Key features:

  • The SIT recess allows a perfect power transfer to the screw thanks to the conial form
  • Its conical inner shape centers the screwing and allows to keep the screw fixed to the screw bit facilitating its installation
  • The SIT recess allows a perfect fit for easy screw-in
  • Work effortlessly, it is not necessary to tighten axially on the screwdriver even with high tightening torques
  • The screw fits perfectly into the screwdriver bit and facilitates installation in any position.
