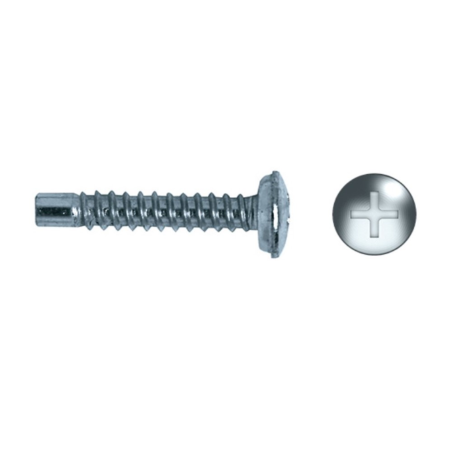

Self-tapping screw cover head dog point CAHP

Self-tapping screw special head for T12 and CAT plastic cover caps
Self-tapping screw cover head dog point CAHP
Product overview
CELO self-tapping screw CAH cover head is designed to fix plastic cover caps CAT and T12. Same head diameter for all screw diameters and the clip on the head helps avoid falls when in use. Made of high-quality steel and blue zinc plated coating.
Download documents
List of references
Reference
d
J
94832CAH
Diameter [mm]
d
J
4.8
Length [mm]
d
J
32
Screw material
d
J
Steel
Nut thickness [mm]
d
J
10
Washer thickness [mm]
d
J
3.5
Head type
d
J
Cover head
Drive system
d
J
PH
Packaging units
d
J
250
Packaging type.
d
J
Box
1 / 1 references are shown
Applications
  • Frames of bathroom partition doors
  • Bathroom partition frames
Further specifications

Key features:

  • Special heads for cover caps types CAT and T12
  • The cap clips on the head for a better and safer fixation
