Spring toggle FK 3x85 S with washer and hexagon nut

Name: Spring toggle FK 3x85 S with washer and hexagon nut
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 9390FKS

Specialised plug for cavity fixings

Product image of spring toggle FK-S with washer and hexagon nut

Application image of spring toggle FK: Light tubes suspended from plasterboard ceiling

Application image of spring toggle FK: Hanging lamps in an office

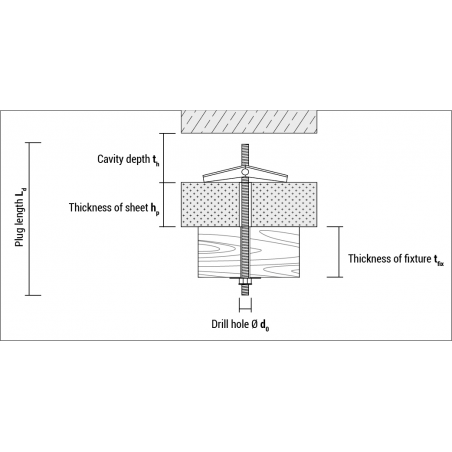

EN - Technical drawing of spring toggle FK

A Back to combination list

Reference:

9390FKS

Coating :

Galvanised

Material :

Steel

Thread th:

Type of plug :

With washer and hexagon nut

Drill hole diameter [mm] d₀:

Plug length [mm] L_d:

Cavity depth [mm] t_h:

Panel thickness [mm] h_p:

≤65

Packaging units:

Packaging type.:

Box

GTIN:

4001990530306

Download documents

Reference Description

9390FKS

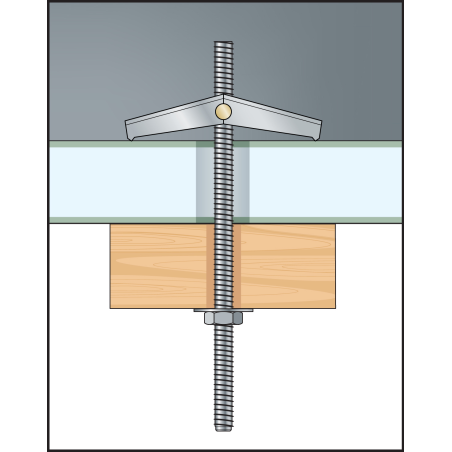

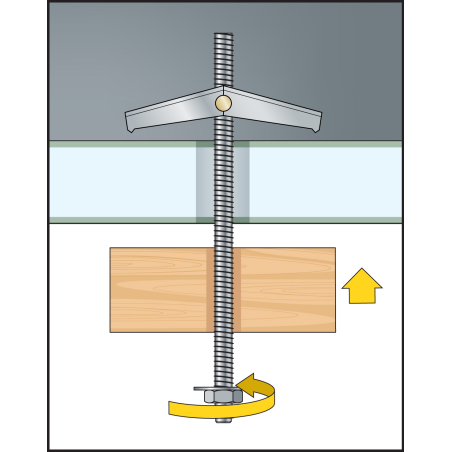

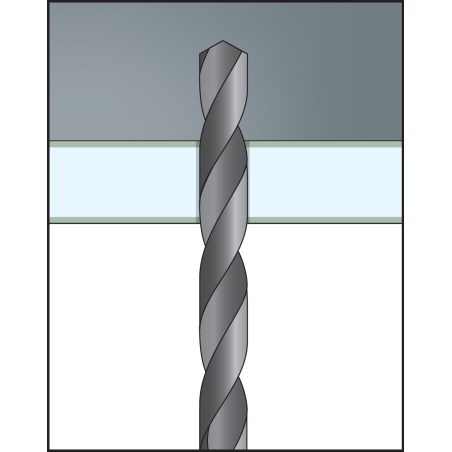

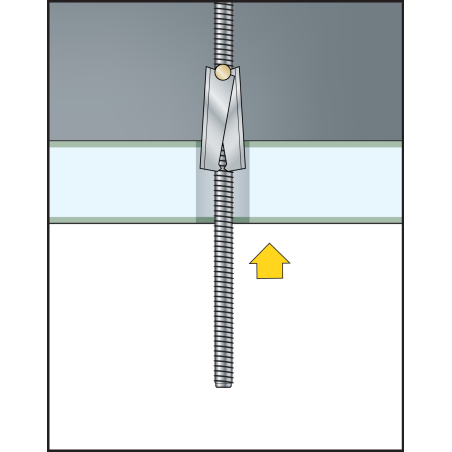

The spring toggle FK 3x85 S with washer and hexagon nut is your solution for fixings in cavity ceilings or walls, and boards like gypsum boards or chipboards. Profit from the easy and fast mounting: Press together the spring toggle and push it through the drill hole. In the free space behind the board the spring toggle folds back and anchors. Due to the long threaded rod the spring toggle can be installed in many different board thicknesses.

The spring toggle is available in four different types: 1) FK-S with washer and hexagon nut, 2) FK-HS with hook, washerand hexagon nut, 3) FK-R with knurled nut, yellow galvanized, 4) FK-UR with knurled nut and washer yellow galvanized.

Applications
