Clamp with EPDM inlay M8+M10 RI 60

Metal clamp with EPDM inlay
Product image of Clamp with EPDM inlay M8+M10 RI 100

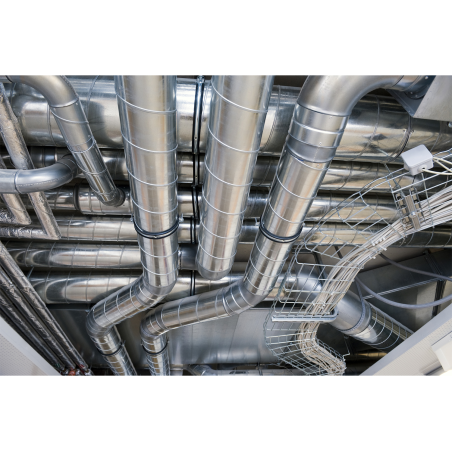

Application image of clamp RI: Fixing large diameter pipes to the ceiling

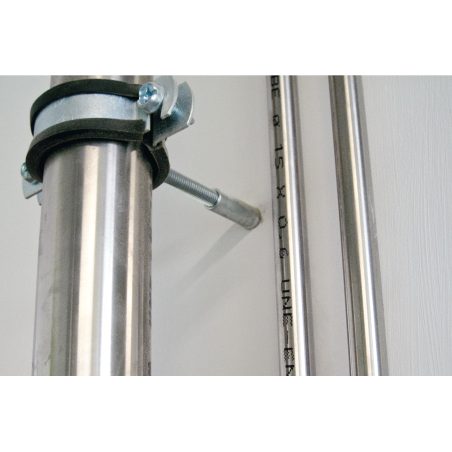

Application image of clamp RI: Fixing of a metal pipe
Clamp with EPDM inlay M8+M10 RI 60

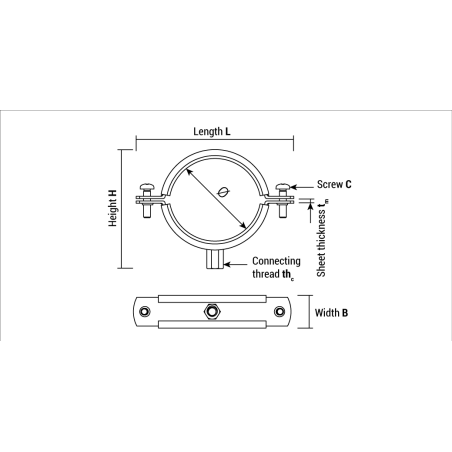

EN - Technical drawing of clamp RI
A Back to combination list
Reference:
960RI
Connecting thread thc:
M8+M10
Material :
Steel + EPDM insert
Width [mm] B:
20
Clamping range [mm] Ø:
59-65
Height [mm] H:
86.5
Length [mm] L:
109
Thickness [mm] S:
1.5
Packaging units:
50
Packaging type.:
Carton
GTIN:
8421814010054
Download documents
Reference Description
960RI
The EPDM rubber lined clamp RI 60 with two connecting thread M8+M10 has a connecting nut with a special resistance due his cross welding. Multifunction screw with hexagonal combination head (slot and crosshead). The clamp incorporates double reinforcement ribs and includes silicon rubber lining suitable for high temperature. Therefore well suitable for hot water and heating pipes. Age-resistant lining. More threaded part in the closing profile to guarantee a better grip and wider profile from diameter 75 mm. Made of high quality steel.
Applications
  • Metal pipes
  • PVC pipes
  • Drainage pipes
  • Steel pipes
Further specifications

Key features:

  • Double reinforcing ribs provide great strength
  • Applus certified
  • RoHS approved
