Multi-purpose plug with collar MZK 6

The all-rounder for every base material
Product image of multi-purpose plug MZK with collar in round box

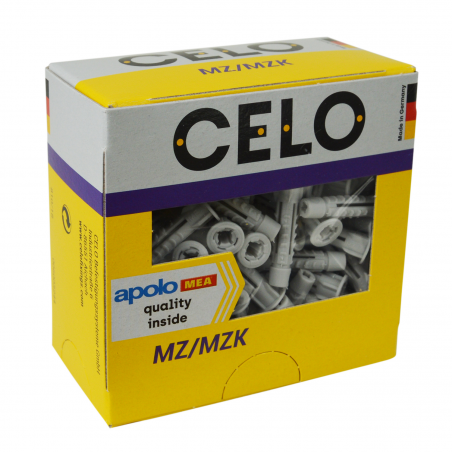

Packaging photo of box 810 multi-purpose plug MZK with collar without screw front side

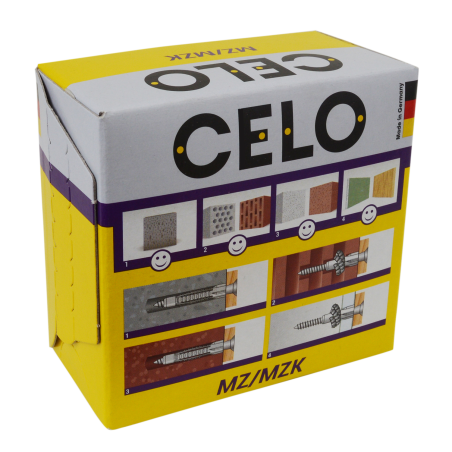

Packaging photo of box 810 multi-purpose plug MZ and MZK back side

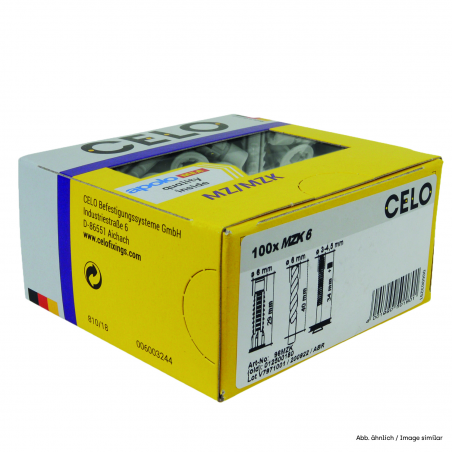

Packaging photo of box 810 multi-purpose plug MZK with collar without screw label side
Mounting image MZ MZK 1
Mounting image 2 multi-purpose plug MZK
Mounting image 3 multi-purpose plug MZK with collar and countersunk screw
Mounting image 4 multi-purpose plug MZK with collar and countersunk screw
Mounting image 5 multi-purpose plug MZK with collar and countersunk screw
Mounting image 6 multi-purpose plug MZK with collar and hex-head screw
Mounting image 7 multi-purpose plug MZK with collar and countersunk screw
Application image of multi-purpose plug MZ: Washstand with washbasin in the bathroom

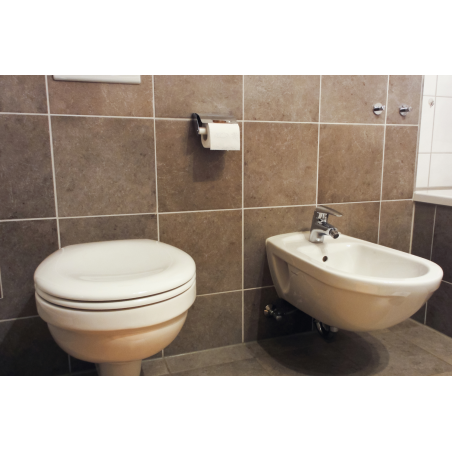

Application image of multi-purpose plug MZ: sanitary fixtures in the bathroom such as toilet paper holder, toilet or bidet

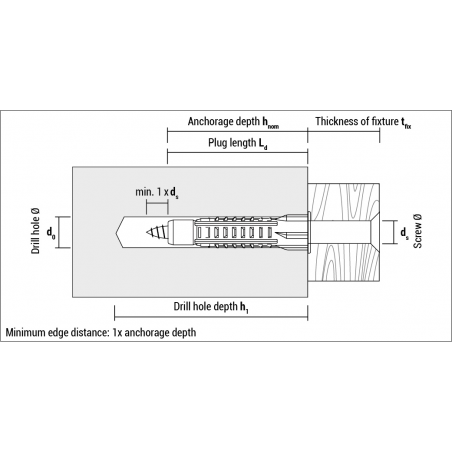

EN - Technical drawing of
A Back to combination list
Reference:
96MZK
Material :
Polyethylene
Type of plug :
with collar
Drill hole diameter [mm] d0:
6
Drill hole depth [mm] h1:
40
Anchorage depth [mm] hnom:
29
Plug length [mm] Ld:
30
Screw diameter [mm] ds:
3-4.5
Panel thickness [mm] hp:
> 7
Packaging units:
100
Packaging type.:
Box
GTIN:
4001990501801
Download documents
View videos
Reference Description
96MZK
The multi-purpose plug MZK 6 has proved its talent a million times and is suitable for almost every building material. With the 4-sided expansion in solid building materials and the knotting in perforated bricks or board materials the plug always provides a secure fixing with high pull out loads. Consisting of high quality polyethylene the MZK guarantees long lasting elasticity and reliable knotting behaviour. High compatibility- install your plug with a wide range of screw types and sizes while the plug collar inhibits slipping into the drill hole.
Applications
  • Lighting
  • Electric switches
  • Wall rack
  • Wall cabinets
  • Letterbox
  • Curtain rail
  • Handrail
  • TV holder
  • Paintings
  • Industrial HVAC
  • Wash basins
  • Wall-hung toilets
Further specifications

Key features:

  • High-quality polyethylene guarantees long lasting elasticity and reliable knotting
  • Plug collar prevents slipping into the drill hole
Base materials
  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Aerated concrete
  • Hollow brick
  • Hollow sand-lime block
  • Hollow aerated concrete block
  • Chipboards
  • Gypsum
  • Drywalls
Other related products
How to install
Mounting image MZ MZK 1

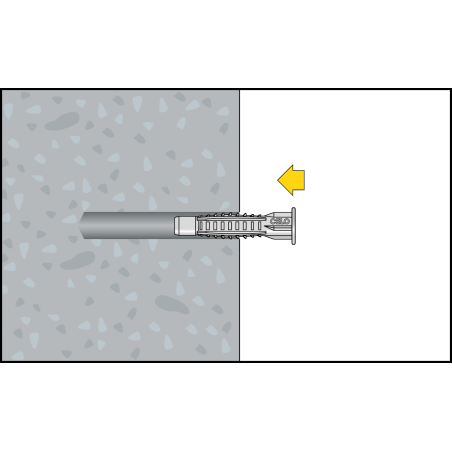

Mounting image 2 multi-purpose plug MZK

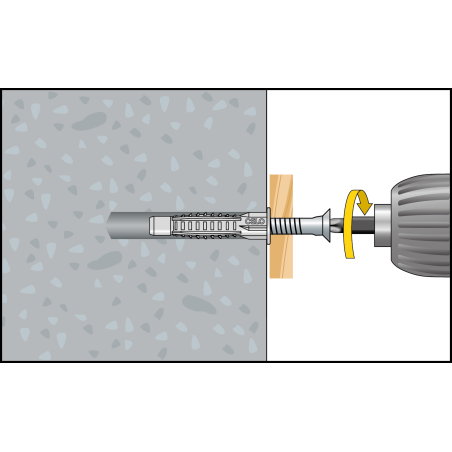

Mounting image 3 multi-purpose plug MZK with collar and countersunk screw

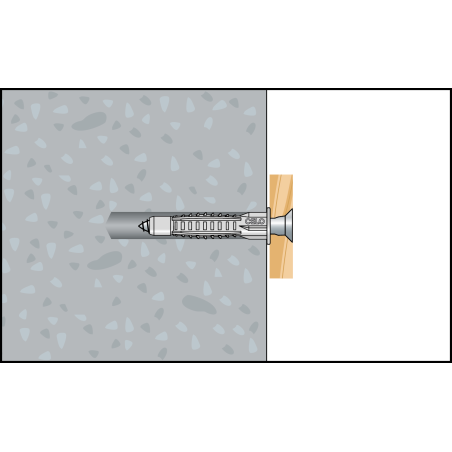

Mounting image 4 multi-purpose plug MZK with collar and countersunk screw

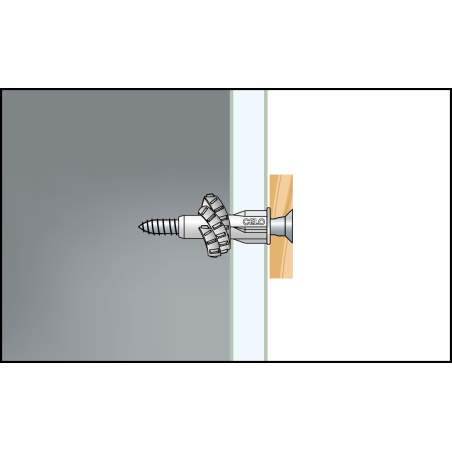

Mounting image 5 multi-purpose plug MZK with collar and countersunk screw

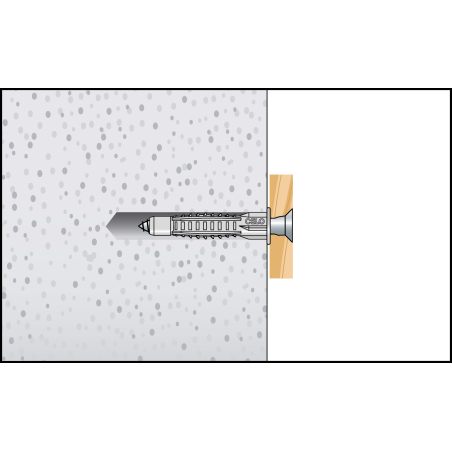

Mounting image 6 multi-purpose plug MZK with collar and hex-head screw

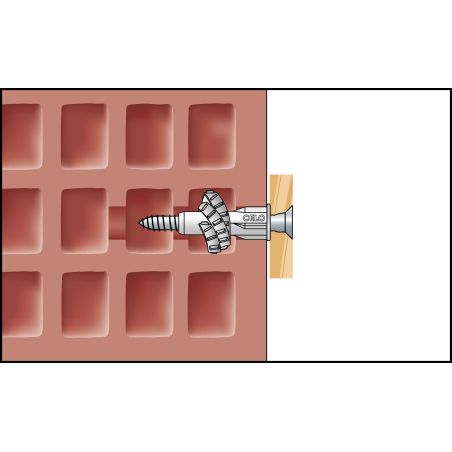

Mounting image 7 multi-purpose plug MZK with collar and countersunk screw
Watch the video
