Plug FX 10 with hex-head wood screw SKS 7,0x65

The ideal plug with high loads in almost all building materials

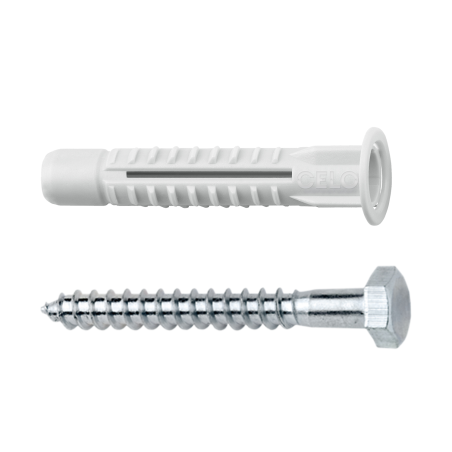

Product image of plug FX with hex head wood screw

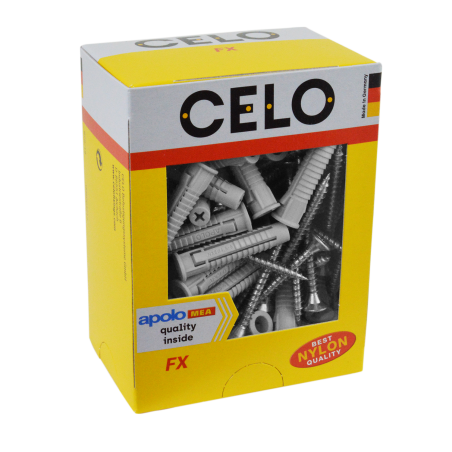

Packaging photo of box 828 plug FX with screw front side

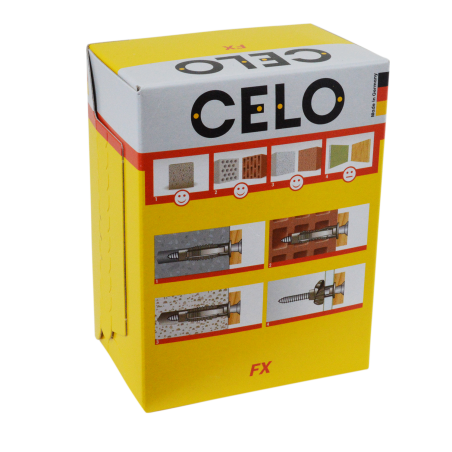

Packaging photo of box 828 plug FX back side

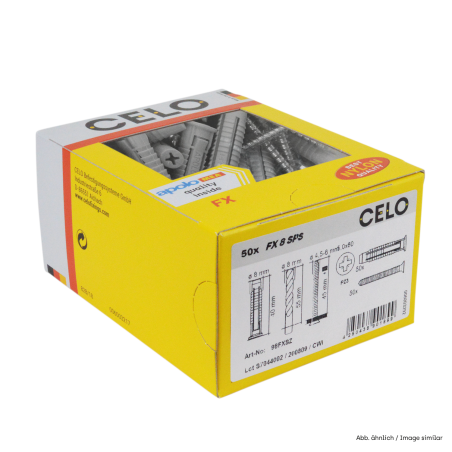

Packaging photo of box 828 plug FX with screw label side

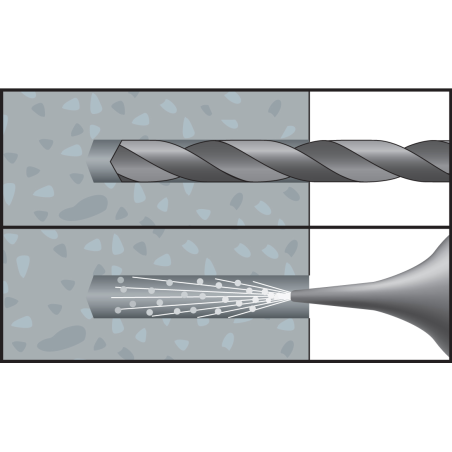

Mounting image FX 1

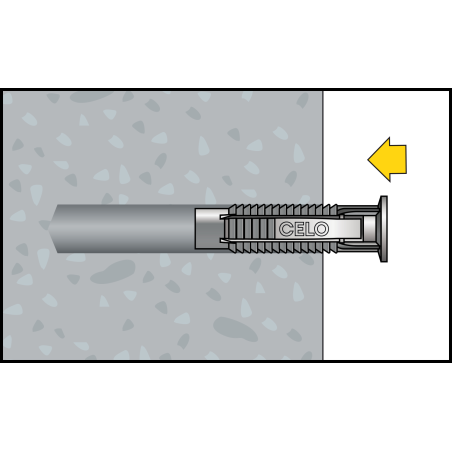

Mounting image FX 2

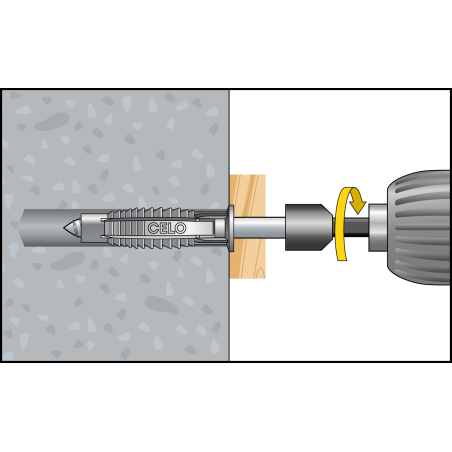

Mounting image FX 3 hex-head screw

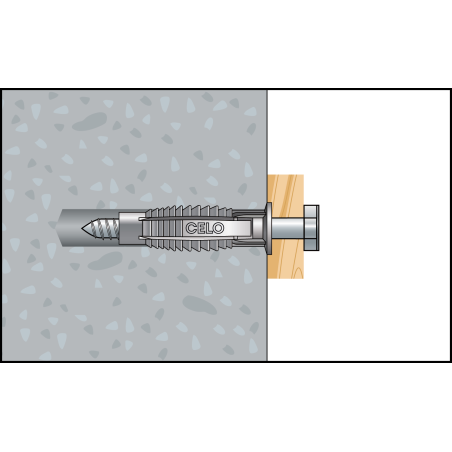

Mounting image FX 4 hex-head screw

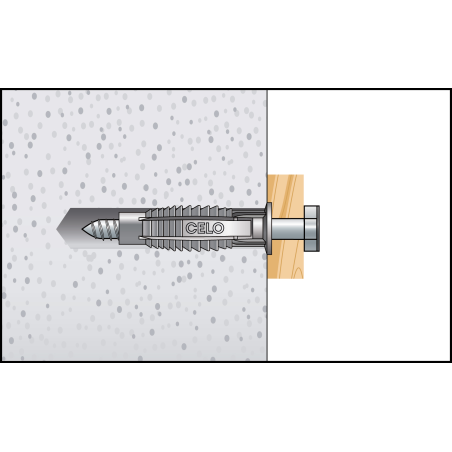

Mounting image FX 5 hex-head screw

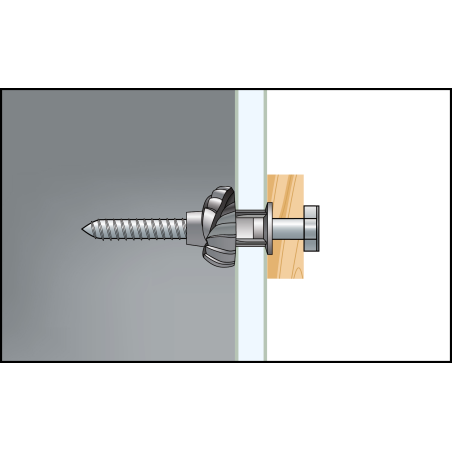

Mounting image FX 6 hex-head screw

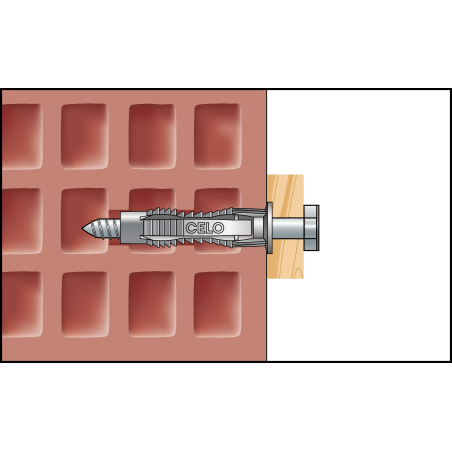

Mounting image FX 7 hex-head screw

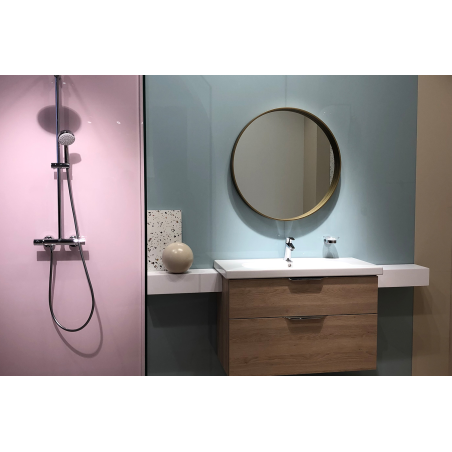

Application image of plug FX: mirror, bathroom cabinet and shower armature in the bathroom

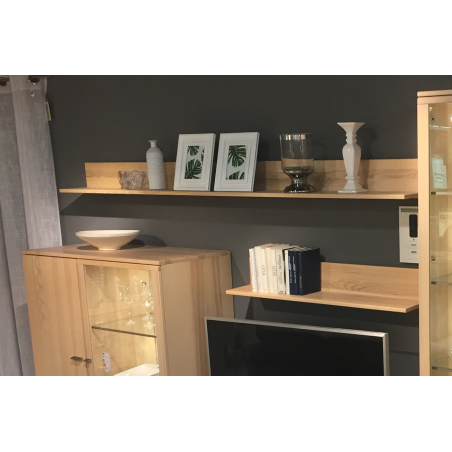

Application image of plug FX: Board fixed directly to the wall

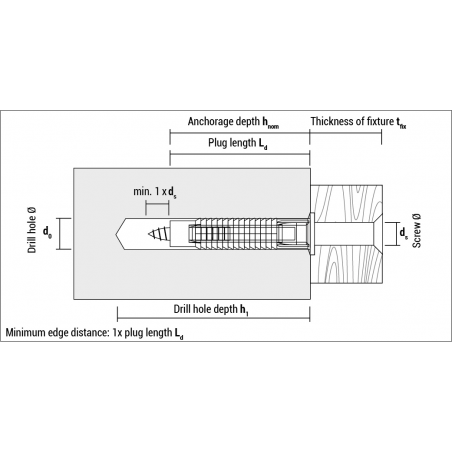

EN - Technical drawing of plug FX
A Back to combination list
Reference:
910FXK
Coating :
Galvanised
Material :
Nylon
Screw material :
Steel
Head type Head:
Hex-head
Drill hole diameter [mm] d0:
10
Drill hole depth [mm] h1:
70
Plug length [mm] Ld:
50
Screw diameter [mm] ds:
7
Thickness of fixture [mm] tfix:
10
Screw length [mm] Ls:
65
Recess type Drive:
SW 12
Anchorage depth [mm] hnom:
49
Screw dimensions [mm] Screw:
7x65
Packaging units:
25
Packaging type.:
Box
GTIN:
4250438901905
Download documents
View videos
Reference Description
910FXK
1 kit includes:
  • 1 x Wood Screw 7,0x65 hexagon head, DIN 571
  • 1 x Plug FX 10

The popular nylon plug FX 10 is one of the most versatile nylon plug that achieves very high load values in various building materials due to its 4-side expansion. The FX plug features anti-rotation lugs which prevent rotation in the drill hole, transferring the force optimally into the base material. In addition and for further installation comfort it has a collar that prevents the plug from slipping into the drill hole.

The FX plug is made of high quality ageing resistant nylon and can be used with different types of screws such as wood screws, chipboard screws or self-tapping screws guaranteeing a secure and solid fixing. With a temperature resistance from -40°C to +80°C, the plug FX is suitable for a wide range of applications, from lighting and sanitary installations to wall cabinets and shelves.

Quality made in Germany!

Ready to use: You will recieve 25 pieces of plug FX 10 and matching wood screws 7,0x65 with hex-head in the characteristic yellow box.

Applications
  • Lighting
  • Electric switches
  • Wall rack
  • Wall cabinets
  • Letterbox
  • Curtain rail
  • Sanitary fixings
  • Handrail
  • TV holder
  • Paintings
Further specifications

Key features:

  • 4-sided expansion for high pull-out loads
  • Efficient anti-rotation lugs prevent rotation in the drill hole
  • Plug collar prevents slipping into the drill hole
  • High-quality age-resistant nylon
Base materials
  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Gypsum
  • Hollow brick
  • Hollow sand-lime block
  • Hollow aerated concrete block
  • Drywalls
Other related products
How to install
Mounting image FX 1
Mounting image FX 2
Mounting image FX 3 hex-head screw
Mounting image FX 4 hex-head screw
Mounting image FX 5 hex-head screw
Mounting image FX 6 hex-head screw
Mounting image FX 7 hex-head screw
