Injection mortar ResiFIX VY 300 SF, Vinylester

The right option for all common substrates

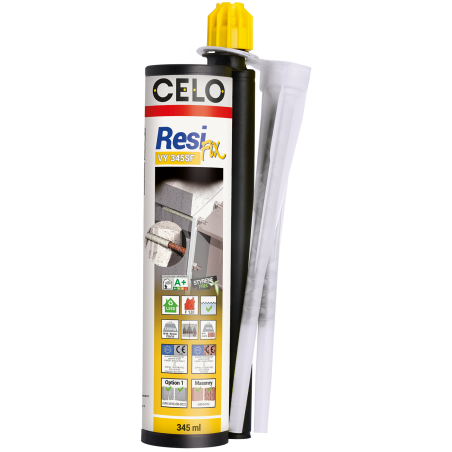

Product image of cartige injection mortar ResiFIX VY 300 SF, Vinylester with two mixing nozzles

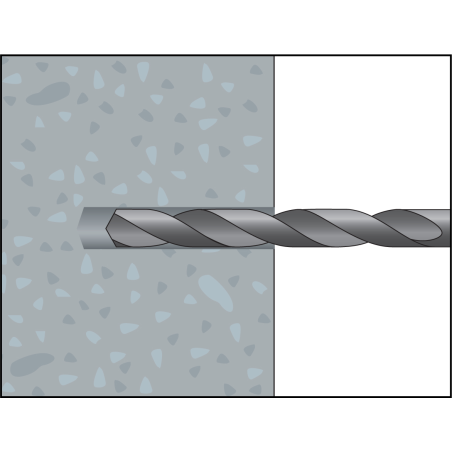

Montagebild ResiFIX 1

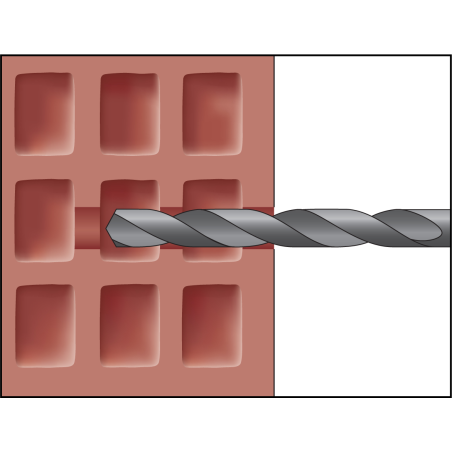

Mounting image ResiFIX 10

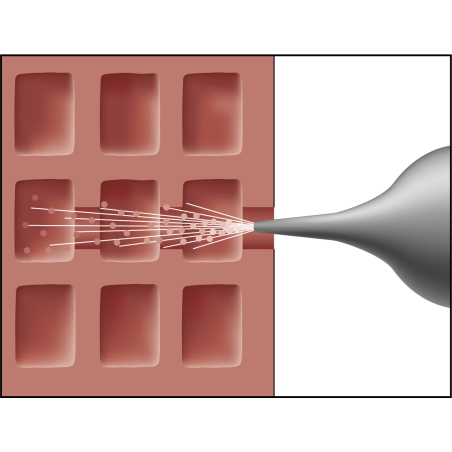

Mounting image ResiFIX 11

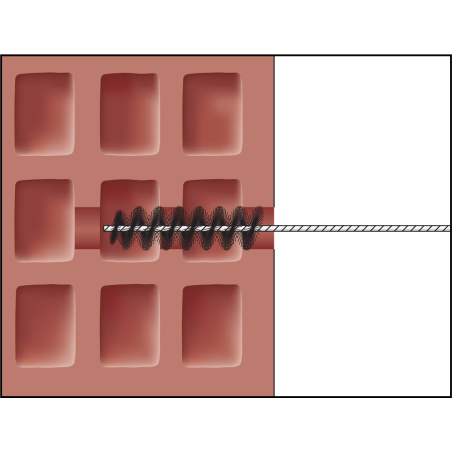

Mounting image ResiFIX 12
Mounting image ResiFIX 13
Mounting image ResiFIX 14

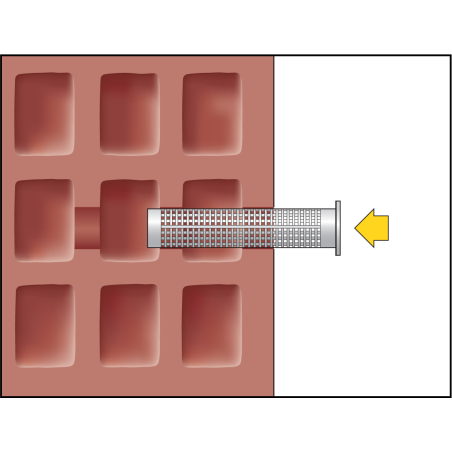

Mounting image ResiFIX 15

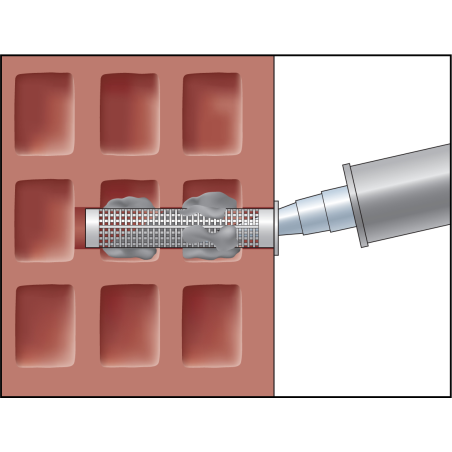

Mounting image ResiFIX 16

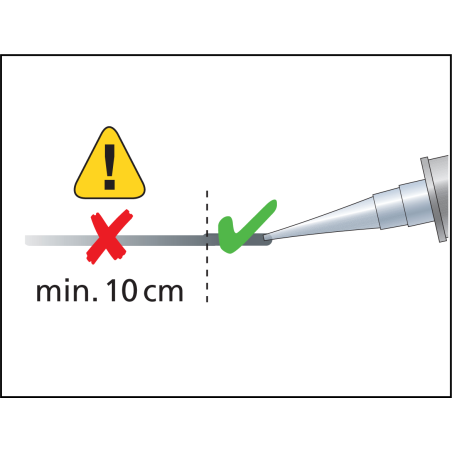

Mounting image ResiFIX 17

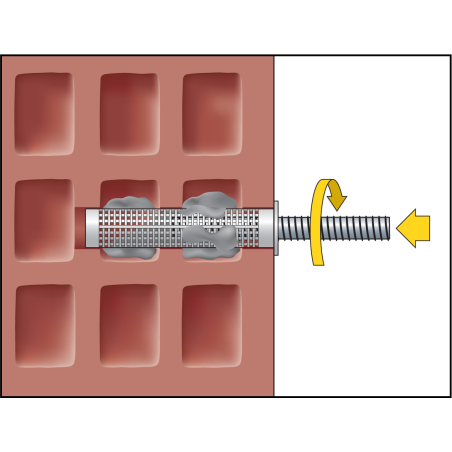

Mounting image ResiFIX 18

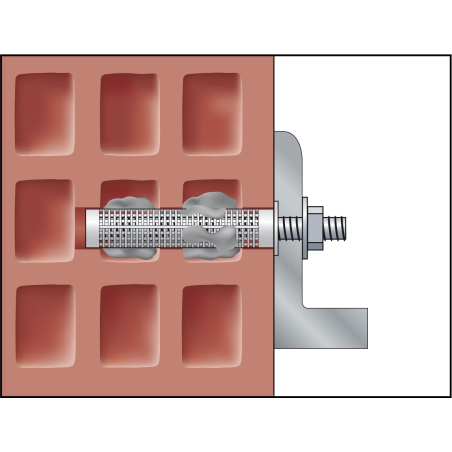

Mounting image ResiFIX 19

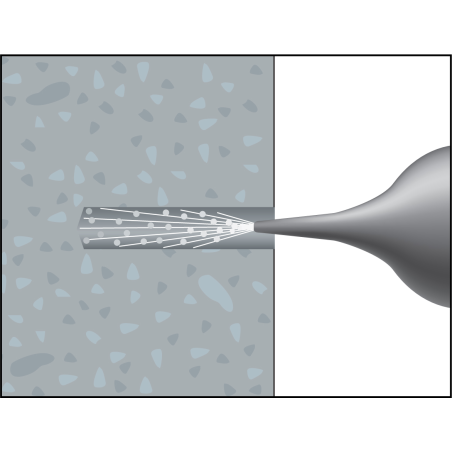

Mounting image ResiFIX 2

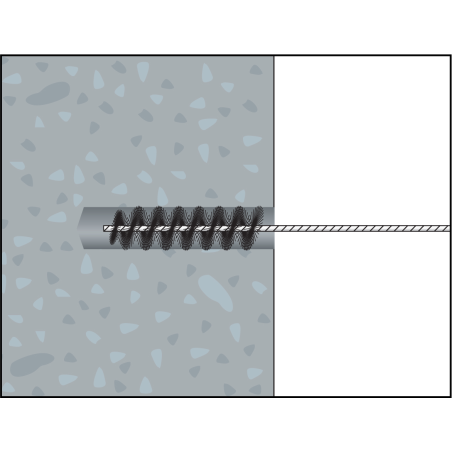

Mounting image ResiFIX 3
Mounting image ResiFIX 4

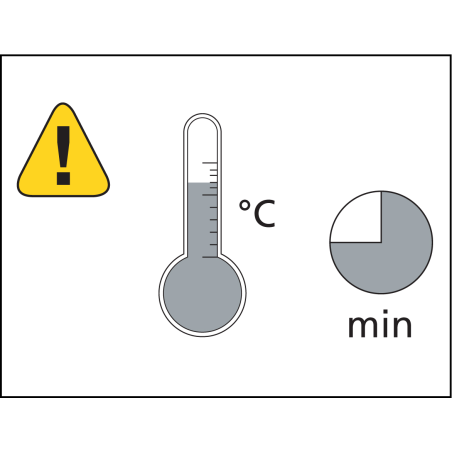

Mounting image ResiFIX 5

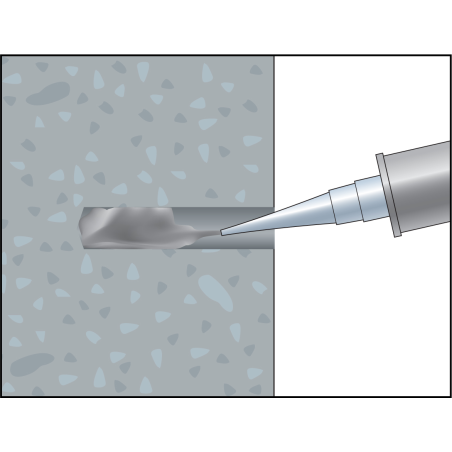

Mounting image ResiFIX 6

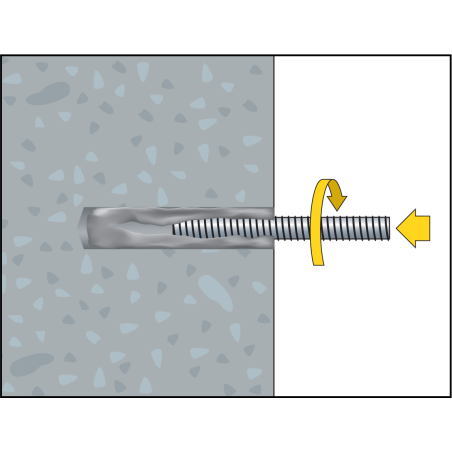

Mounting image ResiFIX 7
Mounting image ResiFIX 8

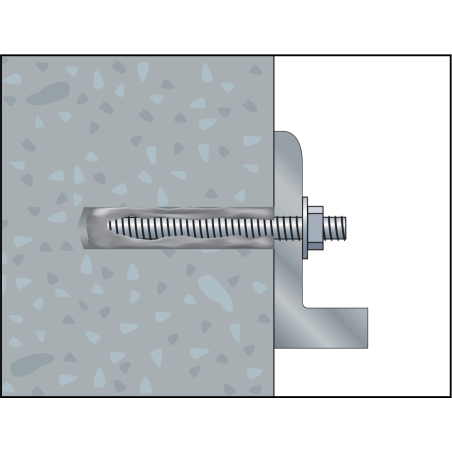

Mounting image ResiFIX 9

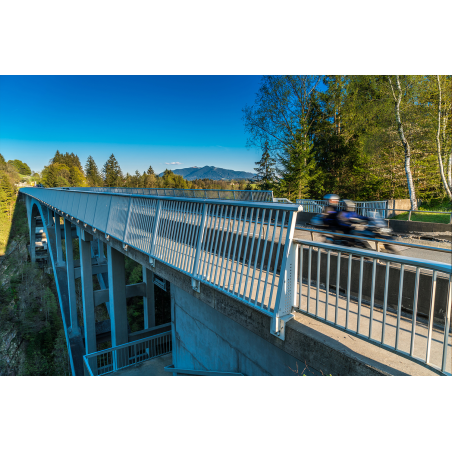

Application image of injection system ResiFIX VY SF: metal railing of a bridge in the mountains

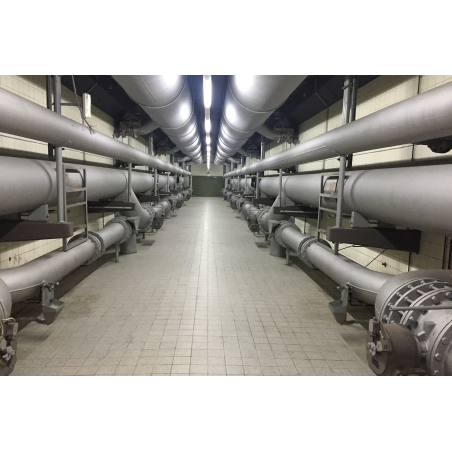

Application image of injection system ResiFIX VY SF: Fixing large metal pipes

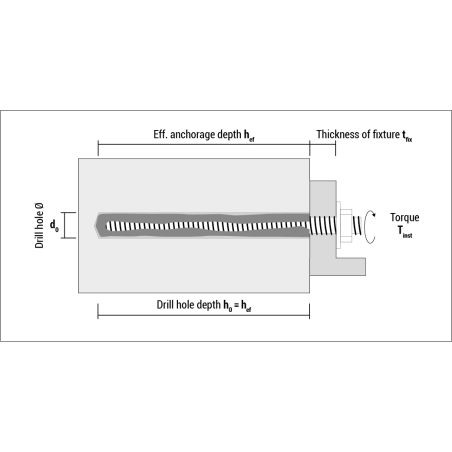

EN - Technical drawing of injection mortar ResiFIX in concrete

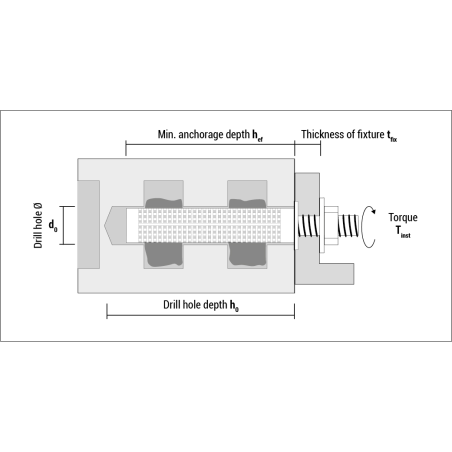

EN - Technical drawing of injection mortar ResiFIX in masonry
A Back to combination list
Reference:
300VSF
Material :
Vinylester
Content [ml] Content:
280
Packaging units:
1
Packaging type.:
Cartridge
GTIN:
4001990499979
Reference Description
300VSF

The injection mortar ResiFIX VY300 SF is your all-rounder for all kinds of applications: For your security, ResiFIX is ETA-approved for cracked concrete (Option 1) and masonry and achieves very high loads. That way it is perfectly suitable for heavy-duty applications and enables an installation free of expansion forces of e.g. anchor rods, anchor studs, square pipes, etc. also in many other base materials like hollow bricks, solid bricks and concrete.

ResiFIX has been tested and confirmed to have minimal emissions, earning it an A+ rating for critical emissions in enclosed areas. You can trust that ResiFIX is harmless to your health. Once cured it is suitable for contact with drinking water, making it a reliable choice for various applications, including in wet conditions or water-filled drill holes.

Additionally, it obtains the LEED sustainability certificate for environmentally friendly, low-pollutant low-emission and sustainable building. This product is tested for use under seismic action (class C1) and complies with fire protection requirements with the fire resistance class R120.

After curing ResiFIX resists a temperature range of -40°C up to +120°C.

Two mixing nozzles are included with each cartridge so that you can continue working quickly after a work interruption.

Applications
  • Steel constructions
  • Cantilevers
  • Facade substructures
  • Machines
  • Distance mountings
  • Wood constructions
  • Guard rails
  • Window and door frame fixings
  • Canopies
  • Consoles
Further specifications

Key features:

  • ETA-Approval Option 1 expects at least 50 years of working life in cracked and non-cracked concrete due to extensive tests
  • ETA assessment option 7 expects at least 50 years of working life in non-cracked concrete
  • ETA-Approval for masonry
  • Fire resistance certificate R120
  • Usable under seismic action
  • Usable in waterlogged drill holes
Base materials
eta
Suitable materials with approvals
Concrete
Concrete
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Lightweight solid concrete block
Lightweight solid concrete block
Hollow brick
Hollow brick
Hollow sand-lime block
Hollow sand-lime block
Lightweight hollow concrete block
Lightweight hollow concrete block
Aerated concrete
Aerated concrete
Other suitable materials
Natural stone
Natural stone
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Step 10
Step 11
Step 12
Step 13
Step 14
Step 15
Step 16
Step 17
Step 18
Step 19
