Insulation plug IPL 90

Name: Insulation plug IPL 90
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 990IPL

Special plug for external insulation composite systems

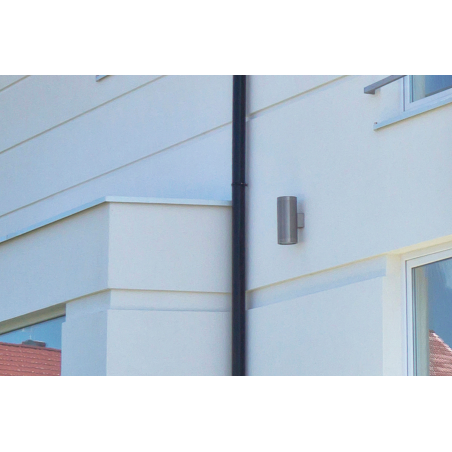

Application image of insulation plug IPL: Lamp on the insulated facade

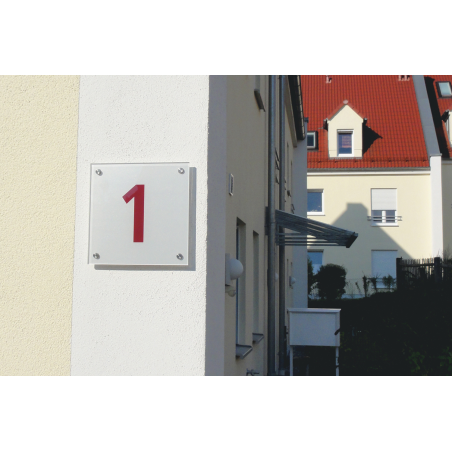

Application image of insulation plug IPL: Number plate on the house wall

A Back to combination list

Reference:

990IPL

Material :

Nylon

Recess type Drive:

TX40

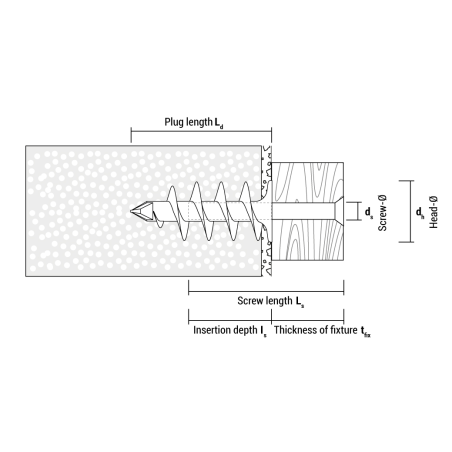

Screw diameter [mm] d_s:

4.5-5

Head diameter [mm] d_h:

Screw insertion depth [mm] I_s:

30-50

Plug length [mm] L_d:

Screw length [mm] L_s:

≥30

Packaging units:

Packaging type.:

Box

GTIN:

4250438945664

Download documents

View videos

Reference Description

990IPL

The IPL 90 insulation plug enables thermal bridge-free fastening directly into insulation materials. Specifically designed for thicker insulation such as mineral wool boards and EPS, the IPL 90 provides excellent anchoring.

Thanks to its innovative thread geometry and slim core, the IPL 90 is ideal for demanding applications. It is particularly suitable for securing ceiling boards made of Heraklith (10–12 mm), metal profiles with pre-punched holes (18 mm through-holes), and other attachments.

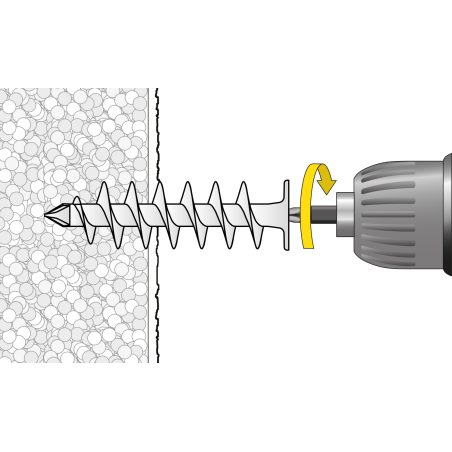

The IPL 90 insulation plug is made of aging- and weather-resistant nylon, with a temperature resistance from -40 to +80 °C. Its sharp cutting tip allows easy penetration through hard ETICS plaster (up to 7 mm) without pre-drilling.

With a 25 mm head diameter and TX40 drive, the IPL 90 ensures simple and reliable installation. Simplify your work with the practical Duo-Bit: no need to switch bits during installation! The Duo-Bit is available in three variants (TX20/TX40, TX25/TX40, and PZ2/TX40), saving both time and costs.

Applications
