Concrete screw BTS PT 5-30/5, Pan head TX25, zinc flake coating

Name: Concrete screw BTS PT 5-30/5, Pan head TX25, zinc flake coating
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 9ZG530BTSPT

Universal screw for direct and fast fixing

Product image of concrete screw BTS 5 PT with pan head

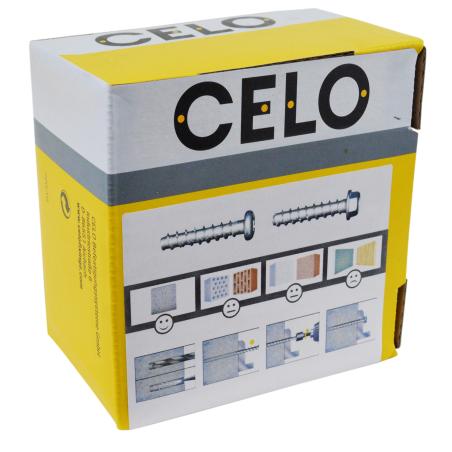

Packaging photo of box 720 concrete screw BTS5 PT front side

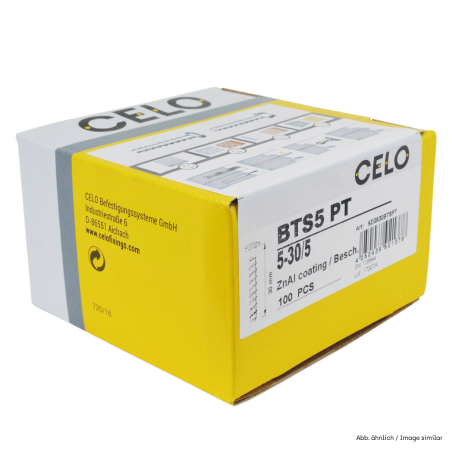

Packaging photo of box 720 concrete screw BTS5 PT label side

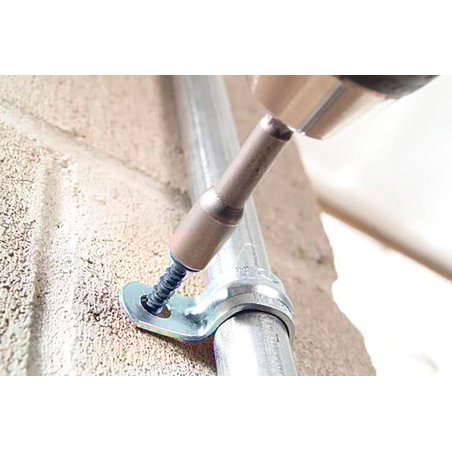

Application image of concrete screw BTS5: Metal tube is fixed to the wall with metal clip and BTS5

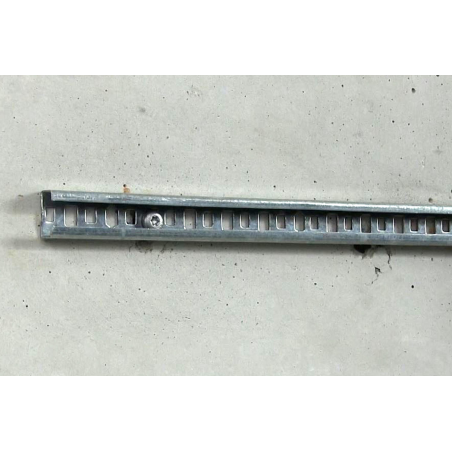

Application image of concrete screw BTS5 with pan head: metal trakc on concrete wall

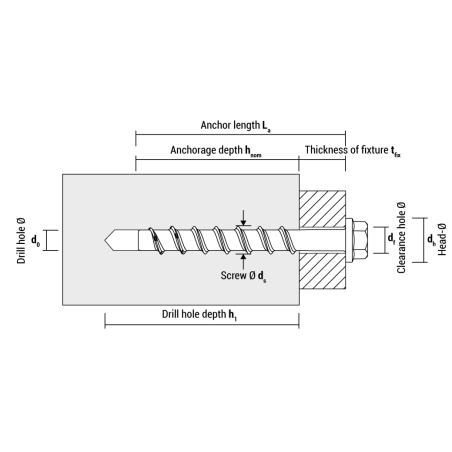

EN - Technical drawing of concrete screw BTS

A Back to combination list

Reference:

9ZG530BTSPT

Coating :

Zinc flake coating

Head type Head:

Pan head

Material :

Steel

Recess type Drive:

TX25

Drill hole diameter [mm] d₀:

Drill hole depth [mm] h₁:

Anchorage depth [mm] h_nom:

Screw diameter [mm] d_s:

6.4

Thickness of fixture [mm] t_fix:

Head diameter [mm] d_h:

Clearance hole [mm] d_f:

7.5

Anchor length [mm] L_a:

Screw dimensions [mm] Screw:

6.4x30

Packaging units:

100

Packaging type.:

Box

GTIN:

4250438921378

Download documents

View videos

Reference Description

9ZG530BTSPT

The concrete screw BTS5 PT 5-30/5 with pan head (TX 25. Kopf-Ø: 10 mm) is perfectly suited for a direct and fast fastening in different base materials. Due to the small drill hole of only 5 mm and the low setting depth of only 25 mm, a very low screw-in force is required. It is even possible to install it manually without a screwdriver. The small concrete screw even holds loads of up to 80 kg in concrete. The zinc flake coating provides high corrosion protection. The BTS5 is well suited for electrical and sanitary fixings.
