Concrete screw BTS B 10-60/-, hex-head, zinc flake coating
High loads combined with an easy application.
A Back to combination list
Reference:
9ZG1060BTSB
Coating :
Zinc flake coating
Material :
Steel
Recess type :
SW15
Head type :
Hex-head with integral washer

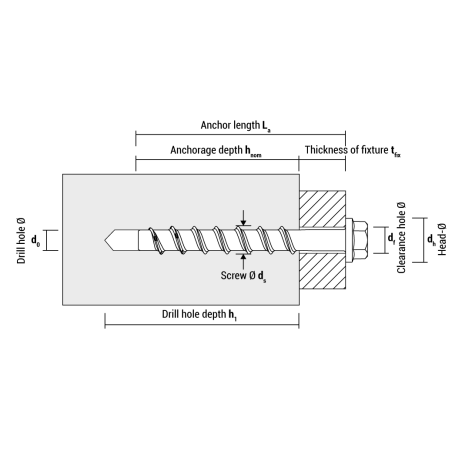

Drill hole diameter [mm] d0:
10
Drill hole depth [mm] h1:
65
Anchorage depth [mm] hnom:
55
Plug length [mm] Ld:
60
Screw diameter [mm] ds:
12.6
Thickness of fixture [mm] tfix:
5/0/0
Head diameter [mm] dh:
20
Clearance hole [mm] df:
13-14
Packaging units:
50
Packaging type.:
Box
GTIN:
4250438916619
Reference Description
9ZG1060BTSB
The concrete screw BTS B 10-60/- is optimally suitable for a wide variety of heavy-duty applications in cracked and non-cracked concrete according to the ETA-assessment Option 1. It achieves highest loads combined with easy mounting (use of an impact wrench is recommended), obtains fire resistance class R 120 for even more safety in case of fire, is approved for use under seismic action (C1) and may even be used to fix fire extinguishing pipe systems to concrete ceilings according to VdS guidelines. The concrete screw as an expansion-force free anchor is also ideal for temporary fixings as it can be removed completely. Due to the integral washer no additional washer is required and you save time during installation, while the zinc flake coating ensures higher corrosion resistance.
Applications
- Steel supports
- Attaching steel structures

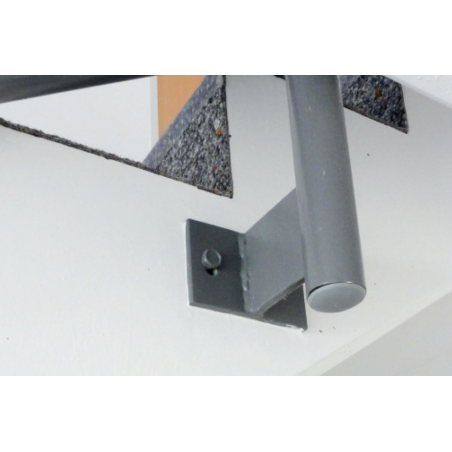

- Guard rails
- Facade substructures
- Machines
- Doors

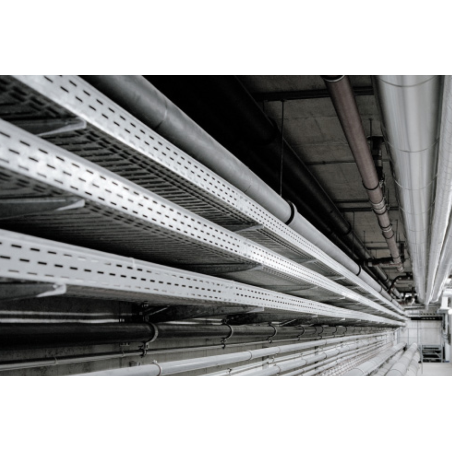

- Pipelines
- Cable trays
- Storage racks
Further specifications
Key features:
- Special thread geometry and hardness
- Zinc flake coating (ZnAl) for improved corrosion resistance and higher application security
- Hex-head with integral washer
- For force free anchoring
- ETA approved for non-cracked and cracked concrete (option 1)

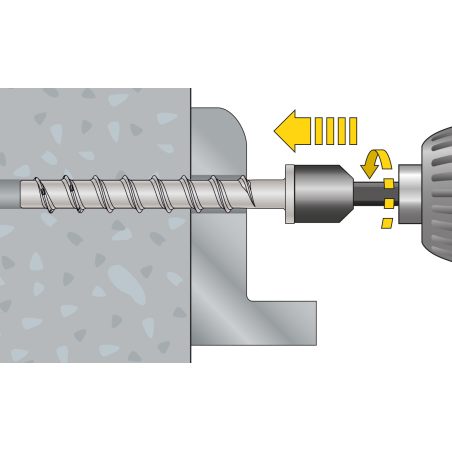

- High loads combined with an easy application (the use of a suitable impact wrench is recommended)

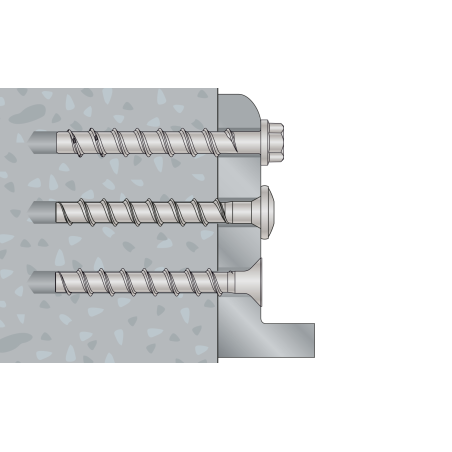

- Variable, because of three setting depths
- May be adjusted
- The BTS is also ideal for temporary fixings as it can be removed completely
Base materials:
- Concrete
- Dense natural stone

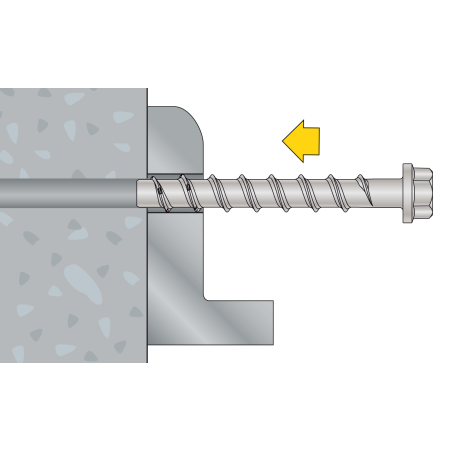

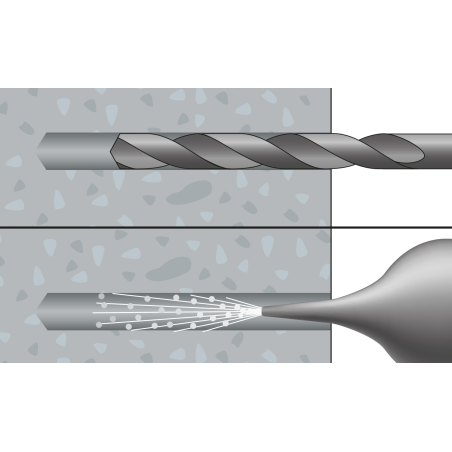

How to install
