Brass plug ME 16-44

Brass plug with internal thread for light an middle loads

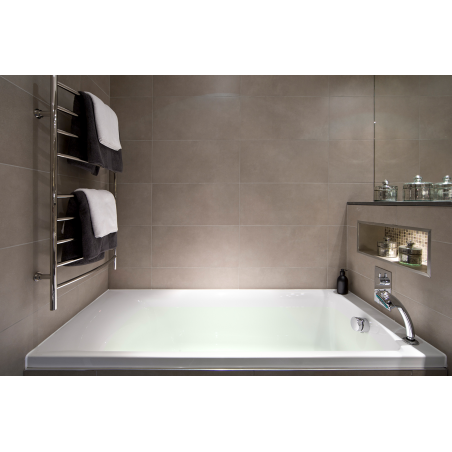

Application image of brass plug ME: Metal holder for towels above the bathtub

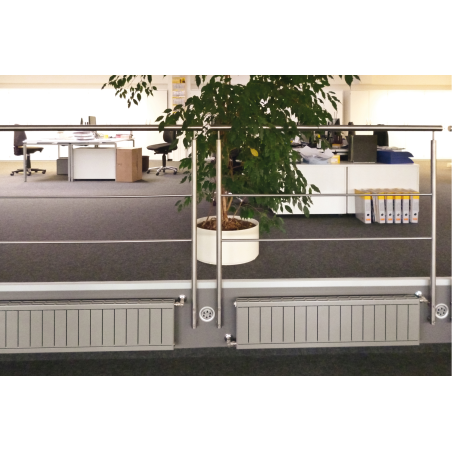

Application image of brass plug ME: Metal railings in the office

A Back to combination list

Reference:

9L16ME

Material :

Brass

Drill hole diameter [mm] d₀:

Drill hole depth [mm] h₁:

Anchorage depth [mm] h_nom:

Internal thread th:

M16

Anchor length [mm] L_a:

Screw insertion depth [mm] I_s:

≥35.2

Packaging units:

Packaging type.:

Box

GTIN:

4001990531457

Download documents

Reference Description

9L16ME

The brass plug ME 16-44 with internal thread M16 offers a solution for fixing light and medium loads indoors and outdoors. It ensures high pull-out values and anti-rotation lock through the fine-running tapered thread as well as a highly knurled outer surface. No special setting tool is necessary, since the spreading takes place by screwing in with a metric screw. The setting depth of the metric screw matches approximately the anchor length (also depends on solidity of base material)- see technical data sheet. Later a quick removal of the fixture is possible. The brass plug as a corrosion resistant anchor is suitable for indoor and outdoor use.

Applications
