Blister Plug with hex-head wood screw FX 10 SKS

The ideal plug with high loads in almost all building materials
Product image of blister plug FX with chipboard screw

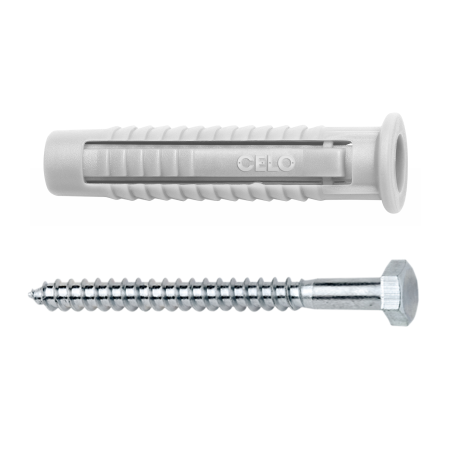

Product image of plug FX with hex head wood screw
Mounting image FX 1
Mounting image FX 2
Mounting image FX 3 hex-head screw
Mounting image FX 4 hex-head screw
Mounting image FX 5 hex-head screw
Mounting image FX 6 hex-head screw
Mounting image FX 7 hex-head screw

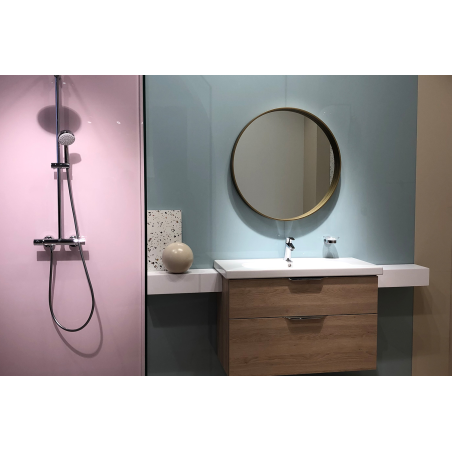

Application image of plug FX: mirror, bathroom cabinet and shower armature in the bathroom

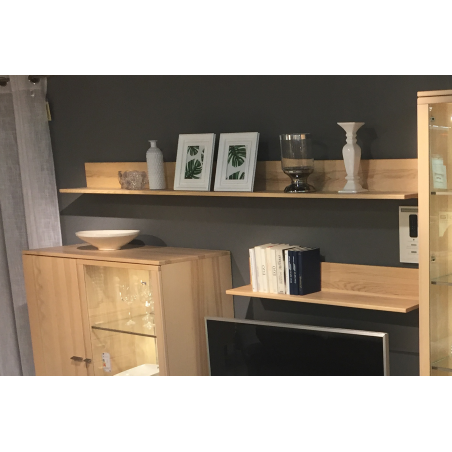

Application image of plug FX: Board fixed directly to the wall

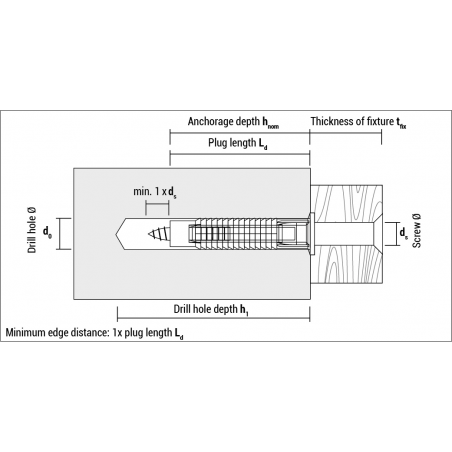

EN - Technical drawing of plug FX
A Back to combination list
Reference:
510FXK5
Coating :
Galvanised
Material :
Nylon
Screw material :
Steel
Head type Head:
Hex-head
Drill hole diameter [mm] d0:
10
Drill hole depth [mm] h1:
70
Plug length [mm] Ld:
50
Screw diameter [mm] ds:
7
Thickness of fixture [mm] tfix:
10
Screw length [mm] Ls:
65
Recess type Drive:
SW 12
Anchorage depth [mm] hnom:
49
Screw dimensions [mm] Screw:
7x65
Packaging units:
5
Packaging type.:
Blister
GTIN:
4250438901530
Download documents
View videos
Reference Description
510FXK5
1 kit includes:
  • 1 x Wood Screw 7,0x65 hexagon head, DIN 571
  • 1 x Plug FX 10

The popular nylon plug FX 10 with screw in blister of CELO is the most versatile 4-side expansion nylon plug that achieves very high load values in various building materials due to its 4-side expansion. The FX plug features anti-rotation lugs which prevent rotation in the drilling hole transferring the force optimally into the base material. In addition and for further installation comfort it has a collar that prevents the plug to slip into the drill hole.

The FX plug is made of high quality ageing resistant nylon that can be used with different types of screws such as wood screws, chipboard screws or self-tapping screws guaranteeing a secure and solid fixing. With a temperature resistant covering ranges from -40°C to +80°C, the plug FX is suitable for a wide range of applications, from lighting and sanitary installations to masonry.

The blister packaging is perfectly suited for the DIY sector.

In one blister you will receive 5 plugs FX 10 and matching wood screws 7,0x60 with hex-head.

Applications
  • Lighting
  • Electric switches
  • Wall rack
  • Wall cabinets
  • Letterbox
  • Curtain rail
  • Sanitary fixings
  • Handrail
  • TV holder
  • Paintings
Further specifications

Key features:

  • 4-sided expansion for high pull-out loads
  • Efficient anti-rotation lugs prevent rotation in the drill hole
  • Plug collar prevents slipping into the drill hole
  • High-quality age-resistant nylon
Base materials
  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Gypsum
  • Hollow brick
  • Hollow sand-lime block
  • Hollow aerated concrete block
  • Drywalls
Other related products
How to install

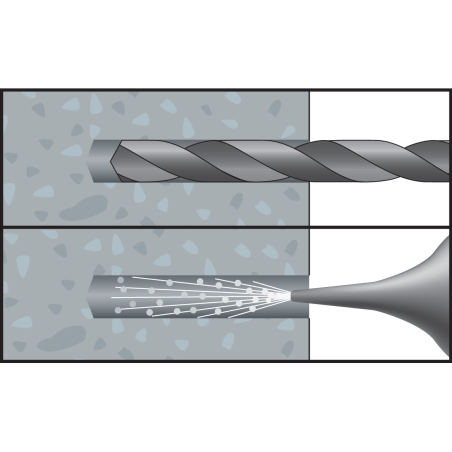

Mounting image FX 1

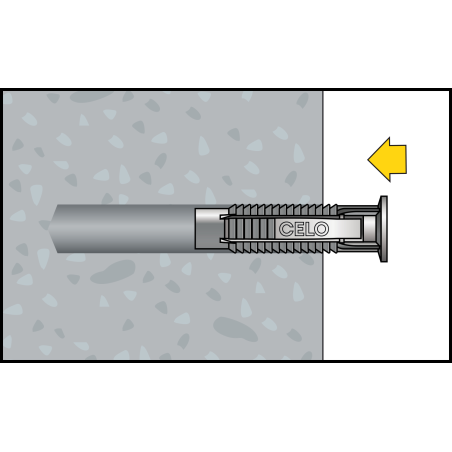

Mounting image FX 2

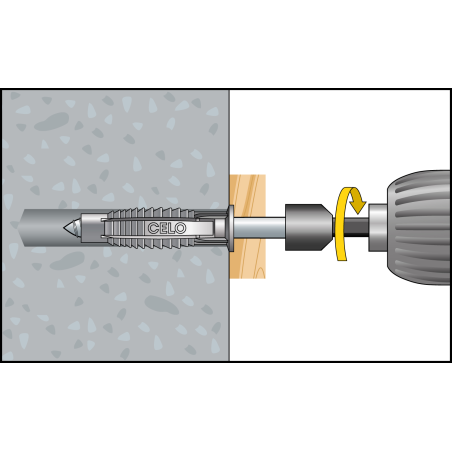

Mounting image FX 3 hex-head screw

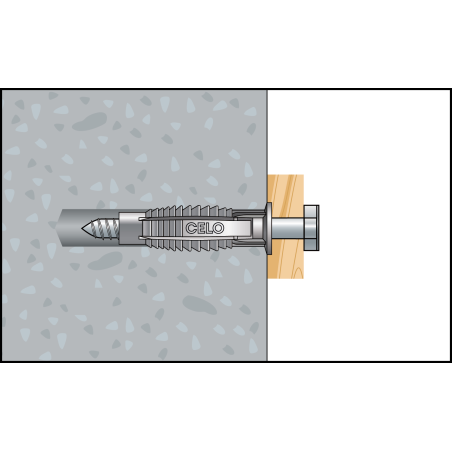

Mounting image FX 4 hex-head screw

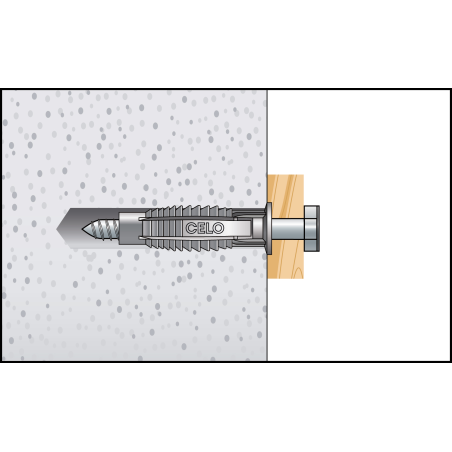

Mounting image FX 5 hex-head screw

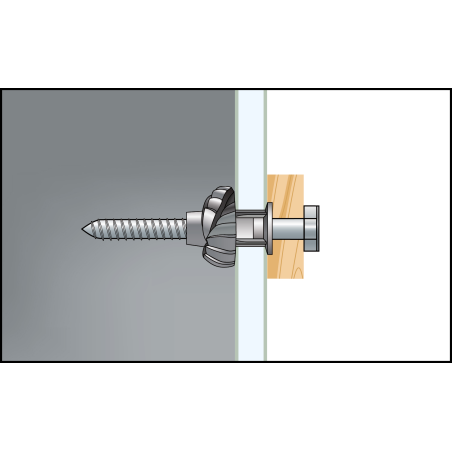

Mounting image FX 6 hex-head screw

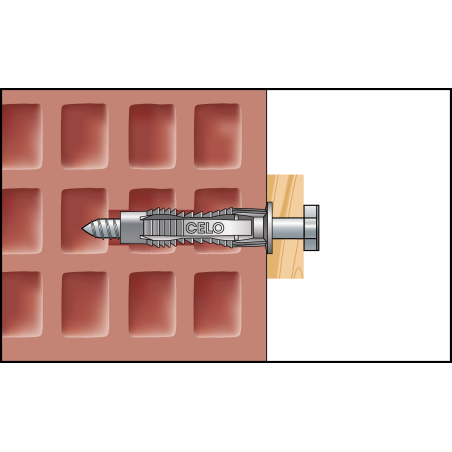

Mounting image FX 7 hex-head screw
